| Brand Name: | Realkey |
| Model Number: | RKCONV-RC |
| MOQ: | 1 unit |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Custom Order | Accept |
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Applicable to various industrial fields, meeting different production environments and needs |

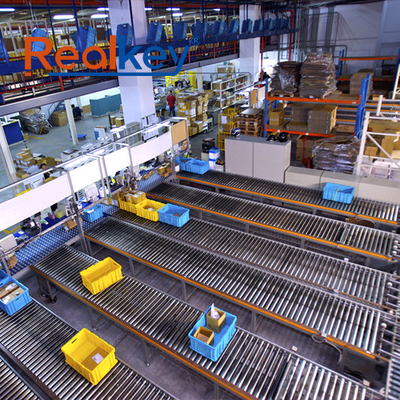

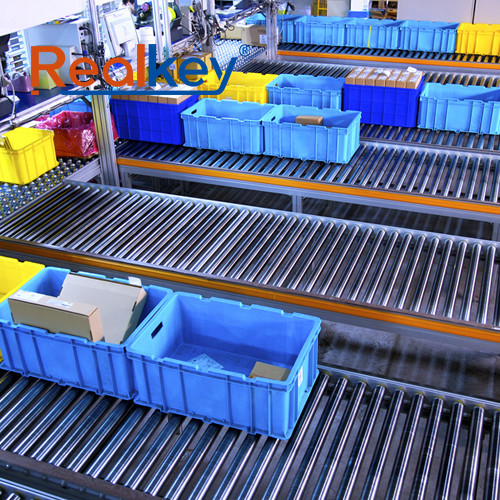

The Realkey Roller Conveyor (RKCONV-RC) is available in powered and gravity versions, designed for seamless integration in automated logistics solutions. These systems consist of driving rollers, free rollers, frames, and control systems, offering high reliability and easy maintenance.
| Content | Technical Parameters |
|---|---|
| Model | RKCONV-RC-38/50/60/76/89 |
| Length | Customizable |
| Effective Width | 400/600/800/1000/1200(mm) |
| Roller Diameter | 38/50/60/76/89(mm) |
| Roller Center Distance | 60/90/120/150(mm) |
| Roller Material | Carbon Steel (Galvanized)/Stainless Steel |
| Transmission Mode | Chain/Multi-Wedge Belt/O-Belt |
| Conveying Type | Flat/Turning/Centering/Side/Accumulation/Merging |
| Drive Type | Non-powered/Reduction Motor/Friction Belt/Electric Roller |
| Operating Speed | 0.1~2.0(m/s) |
| Maximum Load | 50(kg/㎡) |
| Operating Temperature | -20~40(℃) |
| Operating Voltage | No power source/Three-phase five-wire 380V/Single-phase 220V |
| Additional Equipment | Configurable with side guards, photoelectric switches, foot switches, stoppers, etc. |
Customizable roller diameter, spacing, length, and driving mechanisms for diverse applications.
Easy installation, maintenance, and expansion to adapt to changing production demands.
Powered rollers designed for efficiency and gravity rollers utilizing natural momentum reduce energy costs.
Capable of handling diverse weights from small parts to larger packages.
Intuitive control system supports automation and can be enhanced with various accessories for specialized handling.
