| Brand Name: | Realkey |
| Model Number: | RKCONV-RC |
| MOQ: | 1 unit |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Custom Order | Accept |
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Applicable to various industrial fields, meeting different production environments and needs |

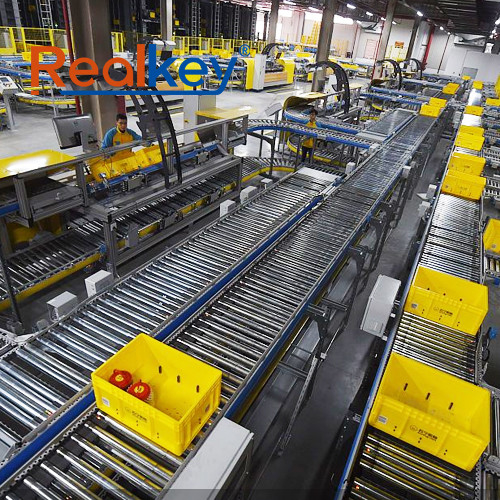

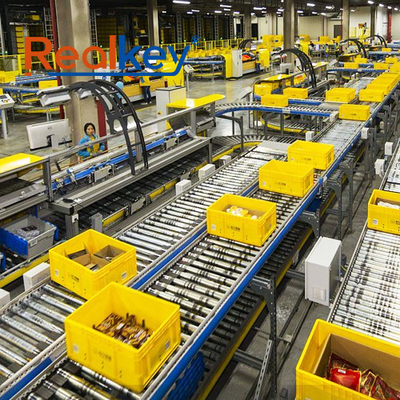

The Realkey Roller Conveyor (RKCONV-RC) is available in two main types: powered roller conveyors and gravity roller conveyors. These systems enable seamless integration and efficient transitions, forming advanced automated logistics solutions when combined with other conveyor types or specialized machinery.
The RKCONV Roller Conveyors consist of driving rollers, free rollers, frames, and control systems. Their straightforward design ensures high reliability and ease of maintenance. These conveyors can transport various items including boxes, bags, and pallets. For bulk materials or irregularly shaped items, we recommend using containers or pallets for safe transport.
| Content | Technical Parameters |
|---|---|
| Model | RKCONV-RC-38/50/60/76/89 |
| Length | Customizable |
| Effective Width | 400/600/800/1000/1200(mm) |
| Roller Diameter | 38/50/60/76/89(mm) |
| Roller Center Distance | 60/90/120/150(mm) |
| Roller Material | Carbon Steel (Galvanized)/Stainless Steel |
| Transmission Mode | Chain/Multi-Wedge Belt/O-Belt |
| Conveying Type | Flat/Turning/Centering/Side/Accumulation/Merging |
| Drive Type | Non-powered/Reduction Motor/Friction Belt/Electric Roller |
| Operating Speed | 0.1~2.0(m/s) |
| Maximum Load | 50(kg/㎡) |
| Operating Temperature | -20~40(℃) |
| Operating Voltage | No power source/Three-phase five-wire 380V/Single-phase 220V |
| Additional Equipment | Configurable with side guards, photoelectric switches, foot switches, stoppers, etc. |
