Long Lifespan Automated Gravity Conveyor Systems Roller Bed Conveyor

Name: Long Lifespan Automated Gravity Conveyor Systems Roller Bed Conveyor
Brand: QINGDAO REALKEY MACHINERY CO.， LTD
SKU: RKCONV-RC
Price: 10000 USD
Availability: InStock

Brand Name:	Realkey
Model Number:	RKCONV-RC
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Applicable To A Variety Of Industrial Fields, To Meet Different Production Environments And Needs

Highlight:

Long Lifespan Gravity Conveyor Systems

Long Lifespan Roller Bed Conveyor

Automated Gravity Conveyor Systems

Product Description

Long Lifespan Automated Gravity Conveyor Systems Roller Bed Conveyor

Product Attributes

Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Applicable to a variety of industrial fields, to meet different production environments and needs

Product Description

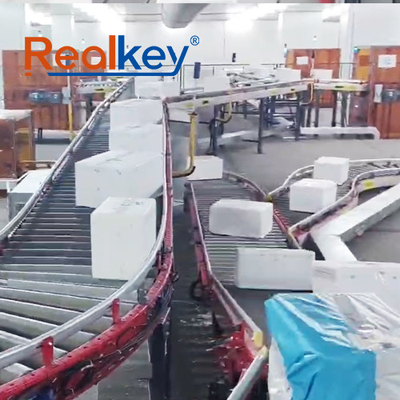

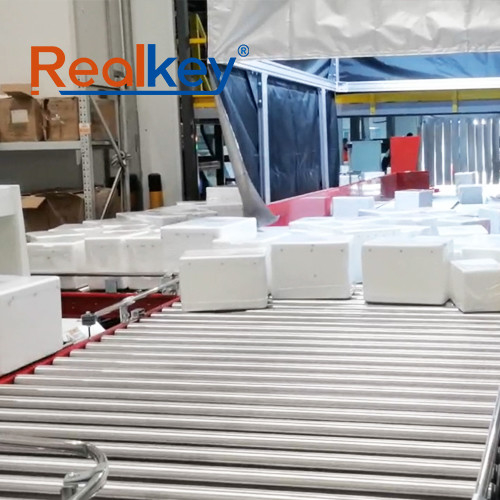

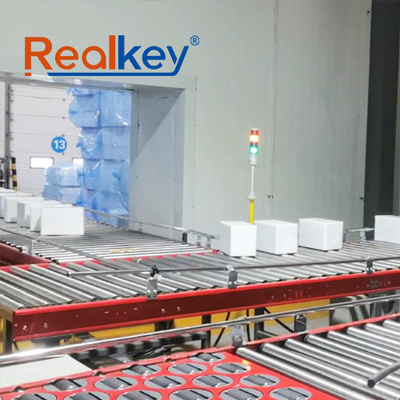

The Realkey Roller Conveyor (RKCONV-RC) is available in two main varieties: powered roller conveyors and gravity roller conveyors, determined by their operational mechanisms. These systems are designed for seamless integration and transitions, enabling the creation of sophisticated automated logistics solutions when combined with various roller conveyor lines and other conveyor types or specialized machinery.

Comprising driving rollers, free rollers, frames, and a control system, the RKCONV Roller Conveyors are built for reliability and ease of maintenance, ensuring user-friendliness. They are capable of transporting a diverse range of items, such as boxes, bags, and pallets. For bulk materials and irregularly shaped items, containers or pallets should be used.

For further information about the Realkey Roller Conveyor (RKCONV-RC), please consult the product descriptions below or contact Realkey customer service representatives.

Technical Parameters

Content	Technical Parameters
Model	RKCONV-RC-38/50/60/76/89
Length	Customizable
Effective Width	400/600/800/1000/1200(mm)
Roller Diameter	38/50/60/76/89(mm)
Roller Center Distance	60/90/120/150(mm)
Roller Material	Carbon Steel (Galvanized)/Stainless Steel
Transmission Mode	Chain/Multi-Wedge Belt/O-Belt
Conveying Type	Flat/Turning/Centering/Side/Accumulation/Merging
Drive Type	Non-powered/Reduction Motor/Friction Belt/Electric Roller
Operating Speed	0.1~2.0(m/s)
Maximum Load	50(kg/㎡)
Operating Temperature	-20~40(℃)
Operating Voltage	No power source/Three-phase five-wire 380V/Single-phase 220V
Additional Equipment	Configurable with side guards, photoelectric switches, foot switches, stoppers, etc.

Product Features

Flexibility: The roller conveyor system can be customized to meet specific production line requirements, including roller diameter, spacing, length, and driving methods.
Modular Design: Featuring a modular structure, the system allows for easy installation, maintenance, and expansion, making it adaptable to changing production needs.
Energy Efficiency: Powered rollers are designed for optimal energy efficiency, while gravity rollers utilize gravitational force and the inertia of transported items, resulting in reduced energy consumption.
High Load Capacity: The system is engineered to handle a variety of weights, accommodating everything from small components to larger products.
User-Friendly Operation: The control system is intuitive and designed for automated operation, minimizing the need for manual intervention.

Applications

Manufacturing Industry: Ideal for automating the movement of components along production lines, improving efficiency and reducing labor costs.
Logistics Centers: Employed in courier and logistics hubs for rapid sorting and transportation of parcels, enhancing operational speed and accuracy.
E-commerce Warehouses: Effectively manages high volumes of order picking in e-commerce environments, facilitating quick movement and sorting of products.
Food and Pharmaceutical Industries: Perfect for sectors with strict hygiene regulations, ensuring cleanliness and safety during material handling.

Advantages

Efficient Material Handling: Ensures high efficiency and reliable material transport during continuous operations.
Mature Technology: Incorporates established technologies that ensure reliability and longevity.
Seamless Automation Integration: Easily integrates with other automated systems.
Low Maintenance Costs: Modular design and quality materials keep maintenance costs low.
Customized Solutions: Provides tailored designs for specific conveying needs.
Scalability: Designed for future growth and increased production capacity.
Comprehensive Safety Features: Includes emergency stop buttons and protective barriers.
Proven Reliability: 17 years of expertise in logistics conveyance with robust, durable products.
