High Efficiency Split Tray Sorter Automatic Reliable With Standardized Design

The Split Tray Sorter (RKSORT-STS), also known as the Bombay Sorter, is a professional sorting solution developed by RKSORT to assist customers in achieving efficient sorting of small to medium-sized items, especially flat items.

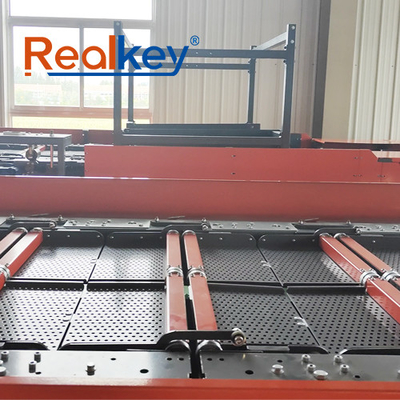

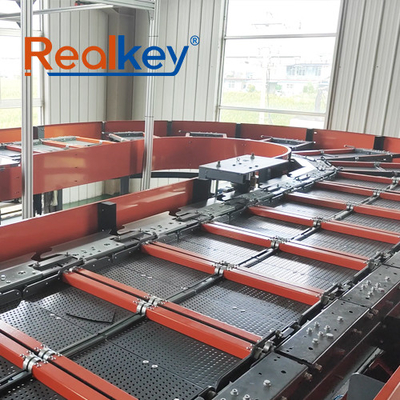

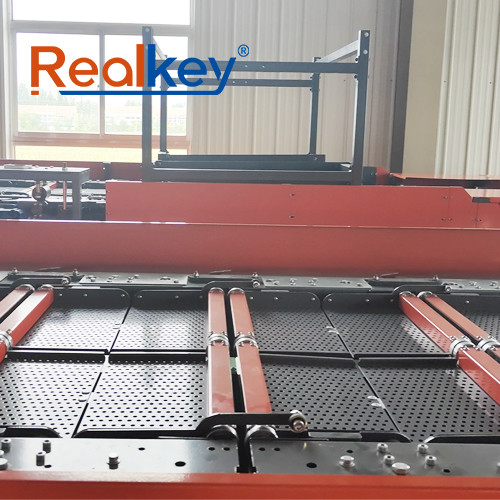

The Split Tray Sorter typically adopts an elliptical horizontal ring layout with single or double-row tray arrangements. The items to be sorted are placed in the trays and travel along the track on the circular line. When they reach the designated position, the two halves of the tray open like movable doors, allowing the products to drop vertically into the chute below or into material boxes, thus completing the sorting action.

Due to the ability to simultaneously place items on double-row trays, the Split Tray Sorter operates at extremely high speeds, making it an exceptionally efficient sorting device capable of processing up to 21,600 trays per hour. It is particularly suitable for sorting clothing, express letters, printed materials, and other flat or non-fragile items, even irregularly shaped items can be easily sorted.

• Strong Applicability: The Split Tray Sorter employs trays to carry items, making it highly adaptable for sorting lightweight, floating, or circular items that are not suitable for sorting by Cross Belt Sorters. It can sort various packaging items, including boxes, plastic bags, cartons, tote bags, and soft packaging.
• Low-Speed High-Efficiency Sorting: The sorting efficiency of the double-row Split Tray Sorter with its unique "one cart, two trays" structure is twice that of a Cross Belt Sorter with the same configuration. The sorting efficiency at a ring line speed of only 1.2m/s can reach 17,280 pieces per hour.
• High Sorting Accuracy: Equipped with advanced algorithmic intelligent cameras, the Split Tray Sorter allows reading codes in any direction, achieving a reading rate of up to 99%. High-tech sensors and PLCs can quickly detect products and determine their path direction.
• High Flexibility: The elimination of chain drive and wheel turning in the transmission system allows distributed small-power motor drives to be deployed at any node of the circular sorting system according to the terrain.
• Small Footprint: With its unique product design, no additional multi-level feeding system is required for loading, and items can be sorted directly into bags or boxes without the need for dedicated chutes.
• Low Energy Consumption: Distributed low-power motor drives save energy. The unloading and resetting mechanism of the sorting cart adopts a purely mechanical structure design, with no additional energy consumption except for the main drive.
• Modular Design: The entire machine adopts standardized, modular design, supporting rapid assembly, disassembly, expansion, and relocation.

Split tray sorters can be widely applied in scenarios requiring high-speed automated sorting of small and medium-sized items, including footwear, books, e-commerce, postal parcels, daily necessities, pharmaceuticals, and jewelry.

For certain very small or light items that are difficult for other types of sorters such as cross belt sorters to handle, as well as irregularly shaped items, split tray sorters can easily achieve automated sorting.

Split tray sorters are best suited for processing large volumes of distribution centers directly serving consumers, enabling batch picking and sorting of small products for discrete orders, such as e-commerce goods, retail clothing, omnichannel, third-party logistics, store replenishment, and returns processing.

• V-shaped Tray Design: The unique V-shaped tray design is capable of accommodating easily rollable items, whether they are lightweight or irregularly shaped.
• Heavy-duty Tray Option: Our heavy-duty trays are specifically designed for demanding postal and courier environments, capable of withstanding heavy loads with each tray accommodating up to 15 kilograms.
• Merging Tray Technology: Our patented double-row tray design allows two groups of trays in the same row to sort two different items to two separate destinations.
• Flat Stacking Technology: For folded garments, books, documents, and other flat standard items, products are dropped directly into boxes or bags.
• Safety Design: Our safety tray design allows for high sorting throughput even at lower sorting speeds with minimal gaps between trays.
• Reliability: With 17 years of experience in logistics conveyance and automated sorting, Realkey has a unique advantage in helping clients devise sorting solutions.
