Modular Bombay Sorter System High Efficiency Low Energy Consumption

Modular Bombay Sorter System High Efficiency Low Energy Consumption

Brand Name:	Realkey
Model Number:	RKSORT-STS
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Solve The Problem Of Sorting Flat And Light Parts

Sorting Capacity:

11,520-21,600 Pieces Per Hour

Sorting Accuracy:

99.99%

Highlight:

Modular Bombay Sorter System

Modular conveyor and sortation systems

High Efficiency Bombay Sorter System

Product Description

Modular Bombay Sorter System High Efficiency Low Energy Consumption

Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Solve the problem of sorting flat and light parts
Sorting Capacity	11,520-21,600 pieces per hour
Sorting Accuracy	99.99%

Product Description

The Split Tray Sorter, commonly known as the Bombay Sorter, is an innovative sorting solution developed by RKSORT, designed to optimize the sorting process for small to medium-sized items, particularly flat ones.

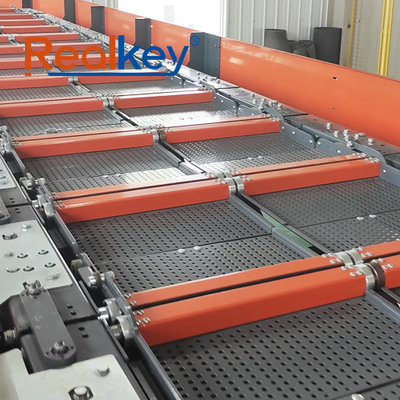

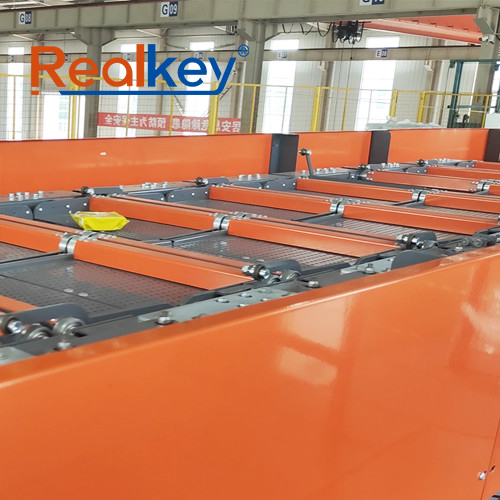

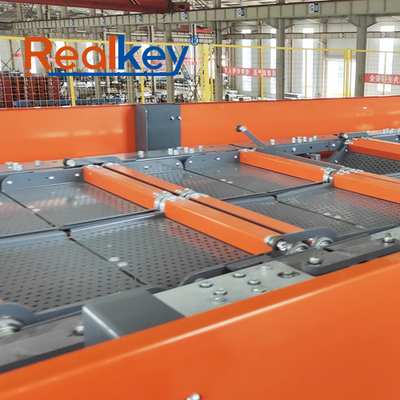

This sorter features an elliptical horizontal ring layout, available in both single and double-row tray configurations. Items placed in the trays move along a circular track. When they reach their designated points, the two halves of the tray open like doors, allowing the items to drop vertically into chutes or directly into material boxes, effectively completing the sorting action.

With the capability to load items on double-row trays simultaneously, the Split Tray Sorter achieves impressive speeds, processing up to 21,600 trays per hour. It is particularly well-suited for sorting clothing, express letters, printed materials, and other flat or non-fragile items, including those with irregular shapes.

Technical Parameters

Equipment Model	STS-500DP
Sorted Items	Small parcels, envelopes, clothing, footwear, pharmaceuticals, etc.
Weight Range	0.01kg≤M≤15kg
Size Range	MAX:400400600mm MIN:50502mm
Sorting Capacity	11,520-21,600 pieces per hour
Sorting Accuracy	99.99%
Feeding Options	Manual / Automatic Feeding Single-side / Double-side Feeding Single-end / Double-end Feeding
Sorting Drop	Direct drop / Buffer drop optional
Ring Line Speed	8-1.5m/s, configured according to efficiency requirements
Pitch	500mm
Overall Dimensions	Ellipse Width: 4.6m, Ellipse Length: Confirmed according to the plan
Main Machine Power Consumption	1.5KW/36 carts
Sorting Trigger	Pneumatic Control
Operating Noise	< 72 dB(A)

Product Features

Strong Applicability: Handles lightweight, floating, or irregularly shaped items including boxes, plastic bags, cartons, tote bags, and soft packaging.
Low-Speed High-Efficiency Sorting: Achieves sorting rates up to 17,280 items per hour at just 1.2m/s, with potential for 34,560 items/hour with dual-side feeding.
High Sorting Accuracy: Advanced intelligent cameras achieve 99% reading accuracy with high-tech sensors and PLCs for precise product separation.
High Flexibility: Distributed low-power motors allow for unlimited sorter length and multiple destination paths.
Small Footprint: Compact structure can be configured around factory columns, maximizing space efficiency.
Low Energy Consumption: Distributed low-power motor drives contribute to significant energy savings.
Modular Design: Supports quick assembly, disassembly, expansion, and relocation.

Application

Ideal for high-speed automated sorting of small and medium-sized items across industries including footwear, books, e-commerce, postal services, daily essentials, pharmaceuticals, and jewelry. Particularly effective in distribution centers serving consumers directly.

Advantages

V-shaped Tray Design: Accommodates easily rollable items of various shapes and weights.
Heavy-duty Tray Option: Supports up to 15 kilograms per tray for rigorous postal environments.
Merging Tray Technology: Patented double-row tray design enables flexible sorting configurations.
Flat Stacking Technology: Eliminates need for additional stacking labor for flat items.
Safety Design: Minimizes gaps between trays with no sharp edges for operator safety.
Reliability: 17 years of experience in delivering durable, tailored sorting solutions.
