| Brand Name: | Realkey |
| Model Number: | RKCONV-MC |
| MOQ: | 1 unit |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,D/P,T/T |
| Attribute | Value |
|---|---|
| Custom Order | Accept |
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Modular, Hygienic, Quiet, Versatile, Energy-Efficient Conveyor |

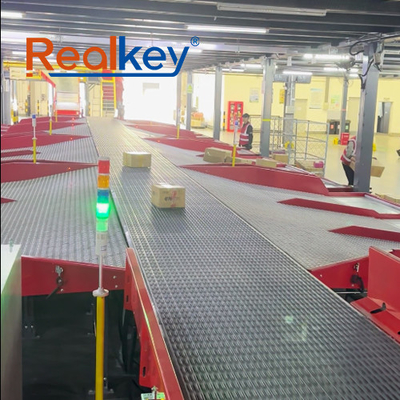

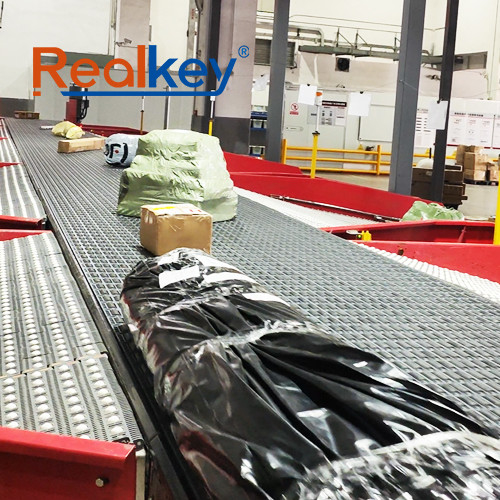

The RKCONV Modular Belt Conveyor (RKCONV-MC) features a modular plastic belt as its primary conveying medium. Operating on principles similar to traditional belt conveyors, it utilizes a drive system to continuously transport the modular belt, ensuring efficient and precise movement of various items.
This conveyor system is lightweight, easy to maintain, and seamlessly integrates into existing setups, making it a popular choice in sectors such as food processing, pharmaceuticals, electronics assembly, and mail sorting. Additionally, it is designed to handle heavier loads, making it suitable for transporting large or heavy items laterally.
The curved modular conveyor can be configured to turn at angles of 30°, 45°, 60°, 90°, 180°, or other specified angles. Custom design options for turning radii enable the creation of more intricate conveying systems when combined with other conveyor lines.
| Specification | Technical Parameters |
|---|---|
| Model Number | RKCONV-MC-L/M/H |
| Equipment Length | 3~20meters |
| Effective Width | 400/600/800/1000/1200/1400mm |
| Belt Material | PU/POM |
| Conveyor Type | Flat/Climbing/Turning |
| Drive Type | Geared Motor |
| Operating Speed | 0.2~1.5(m/s) |
| Maximum Load | 120 kg/square meter |
| Ambient Temperature | -20~40(℃) |
| Ambient Voltage | Three-phase Five-wire 380V/Single-phase 220V |
| Equipment Accessories | Can be configured with accessories such as protective panels, bottom mesh, photoelectric switches, foot switches, etc., according to requirements. |
