| Brand Name: | Realkey |
| Model Number: | RKCONV-RC |
| MOQ: | 1 unit |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Attribute | Value |
|---|---|
| Custom Order | Accept |
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Strong transport capacity, simple structure and easy maintenance, low noise |
Temperature Resistance Belt Conveyor Custom Solutions Continuous Operation

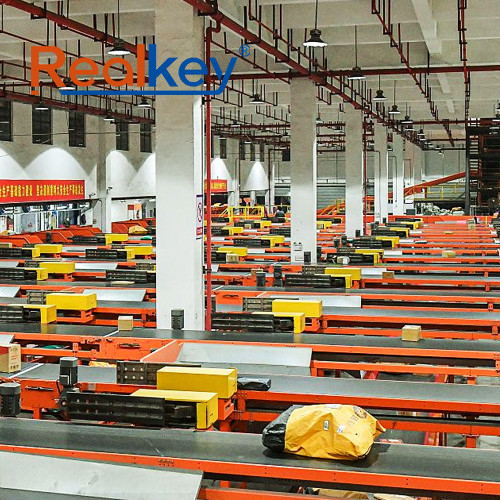

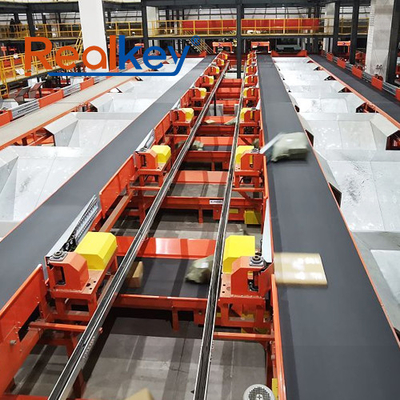

Realkey belt conveyor (RKCONV-BC) primarily consists of conveyor belt, drive unit, conveyor body structure and control system. It is a type of conveying equipment that relies on a drive roller to move the belt to transport materials continuously. Due to its no relative movement between the transported materials and the belt, belt conveyors offer stable transportation, high efficiency, low noise, and minimal energy loss. They are suitable for transporting various shaped items such as cartons, bags, turnover boxes, and plates.
For more detailed information about the Realkey Belt Conveyor (RKCONV-BC), please refer to the product description below or contact Realkey customer service directly.
| Model | RKCONV-BC-204/206/209/211 |
|---|---|
| Length | 1.2~20(m) |
| Effective Width | 400/600/800/1000/1200/1400(mm) |
| Belt Material | PVC/PVK/PU/Composite Belt |
| Conveying Types | Flat/Inclined/Curved/Merging |
| Drive Types | Gear Motor/Electric Drum, Center Drive/End Drive |
| Operating Speed | 0.2~2.3(m/s) |
| Maximum Load | 80(kg/㎡) |
| Ambient Temperature | -20~40(℃) |
| Ambient Voltage | Three-phase Five-wire 380V/Single-phase 220V |
| Accessories | Configurable with side guards, bottom sealing net, photoelectric switch, foot switch, and other accessories as needed. |
| OEM/ODM | Custom design and manufacturing based on customer requirements. |
