High Efficiency Package Sorting Equipment Long Lifespan Warehouse Sorting System

High Efficiency Package Sorting Equipment Long Lifespan Warehouse Sorting System

Brand Name:	Realkey
Model Number:	RKSORT-NBS
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Large And Small Pieces Can Be Sorted At The Same Time

Highlight:

High Efficiency Package Sorting Equipment

Long Lifespan Warehouse Sorting System

Product Description

High Efficiency Package Sorting Equipment Long Lifespan Warehouse Sorting System

Product Specifications

Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Large And Small Pieces Can Be Sorted At The Same Time

Product Overview

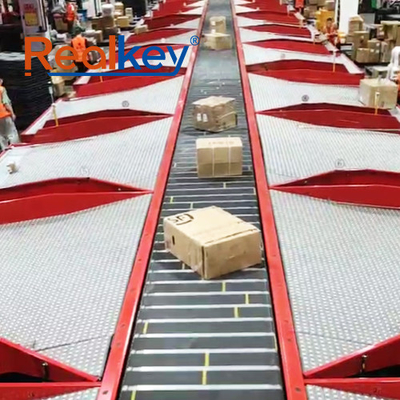

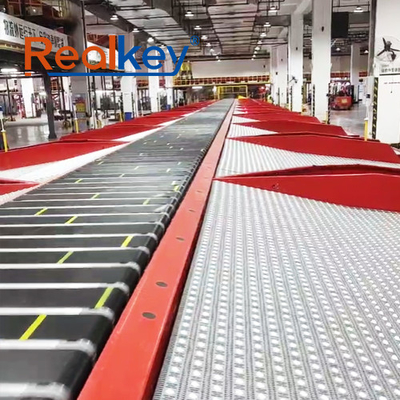

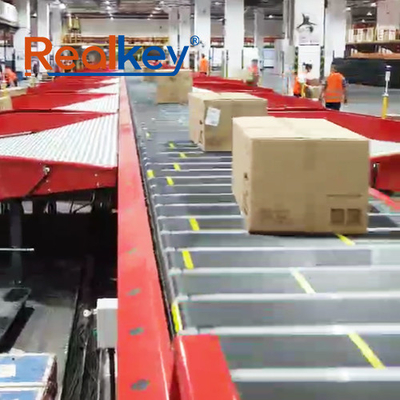

The Narrow Belt Sorter is a highly effective solution for sorting a wide variety of items, such as parcels and cartons, particularly in low-impact situations like handling fresh produce. This sorter is recognized for its distinct advantages in enhancing operational efficiency within logistics systems.

Core Components

Narrow Belt Carts: Linked together to form a long sorting line
Drive Systems: Ensure reliable and efficient movement of items
Machine Frames: Provide necessary structural support
Recognition Systems: Improve sorting accuracy and speed
Communication Systems: Enable effective interaction between components

With a maximum conveying speed of 2.5 meters per second, the sorter can achieve sorting efficiencies of up to 8000 items per hour. It is versatile enough to be utilized in various industries, including postal services, e-commerce logistics, and supermarket distribution.

Technical Parameters

Sorted Items	Various parcels, cartons, foam boxes, woven bags, flexible packages
Weight Range	0.3kg≤M≤60kg
Sorting Capacity	8000p/h
Parcel Size Range	MAX:120010001000mm MIN:15015015mm
Effective Equipment Width	1000mm
Sorting Success Rate	99.99%
Cart Pitch	203mm
Feeding Method	Automatic loading at the head end
Conveying Speed	1.5-2.5m/s
Minimum Height of Sorter	850mm
Operating Noise	≤78dB(A)

Key Features

Exceptional Versatility

The narrow belt sorter features a compact linear design that occupies minimal space while providing strong applicability. With narrow belt conveyors measuring just 174mm wide and minimal gaps of less than 30mm, it can sort nearly all common parcel sizes simultaneously, excelling in the handling of oversized or fragile items.

High Sorting Efficiency

The sorter eliminates the need for manual spacing between sorted items, allowing for a compact arrangement. It automatically adjusts the movements of one or more narrow belt carts based on item sizes, facilitating the simultaneous sorting of items with varying dimensions, which maximizes efficiency.

Advanced Technology

The sorter employs linear motors to drive the mainline, while electric drum motors power the carts. Power is supplied via sliding contacts, and communication occurs through infrared wireless technology, ensuring precise sorting actions based on real-time data.

Customized Solutions

RKSORT provides tailored solutions for diverse user needs. Its modular design allows for easy modifications to existing setups, including the addition of guides and carts to expand sorting capabilities, as well as options for both automatic and manual feeding.

Durability and Maintenance

Realkey's narrow belt sorters are equipped with independently designed electric drum units that allow for modular assembly. This design simplifies maintenance and repair processes, significantly lowering long-term maintenance costs for users.

Applications

Postal and Express Delivery: Efficiently manages parcel sorting for accurate and timely delivery
E-commerce Fulfillment: Enhances logistics efficiency for quick and accurate item picking
Fresh Produce Logistics: Provides gentle handling for sorting fruits, vegetables, and sensitive items
Specialized Manufacturing: Automatically classifies components by size and shape in production lines

Competitive Advantages

Innovative Design: Linear motor technology reduces mechanical failures and eliminates oil contamination risks
Precision Craftsmanship: CNC-machined components ensure high quality and longevity
Safety and Reliability: Comprehensive safety measures protect operators during operation
Proven Experience: 17 years of expertise in logistics and automatic sorting solutions
