Compact High Speed Sorting Conveyor Automated Sorting Conveyor System High Precision

Compact High Speed Sorting Conveyor Automated Sorting Conveyor System High Precision

Brand Name:	Realkey
Model Number:	RKSORT-SWS
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Breaking The Limitation Of Manual Sorting Of Large And Irregular Items

Highlight:

Compact High Speed Sorting Conveyor

Compact Automated Sorting Conveyor System

High Precision High Speed Sorting Conveyor

Product Description

Compact High Speed Sorting Conveyor Automated Sorting Conveyor System High Precision

Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Breaking the limitation of manual sorting of large and irregular items

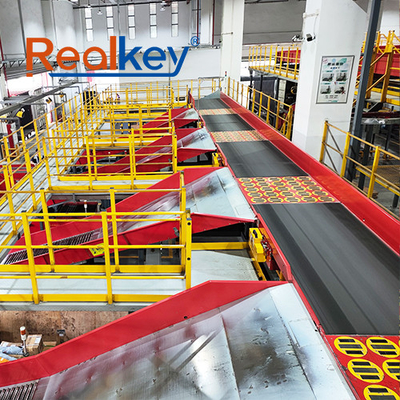

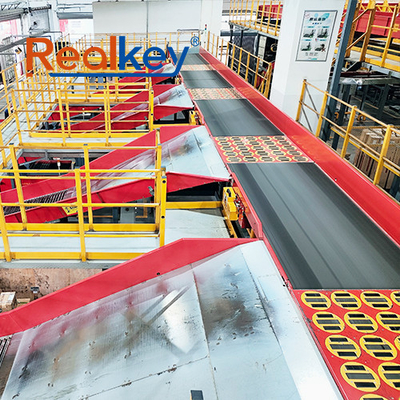

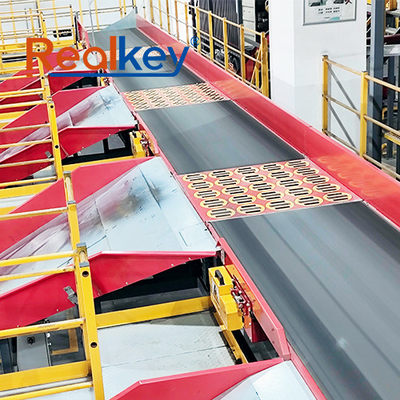

The Swivel Wheel Sorting Machine, often referred to as the Divert Wheel Sorter or Rotating Wheel Sorter, is a state-of-the-art solution designed for the efficient sorting of parcels and cartons in conveyor systems.

This machine integrates an electric drum (wheel), a steering mechanism, a control unit, and a robust frame. It operates by rotating the electric drum to move items, with servo motors and steering modules adjusting the drum's angle to divert items left or right.

Technical Specifications

Model	SWS-10M	SWS-12H
Sorted Items	Medium to large parcels, woven bags, flexible packages, etc.
Weight Range	0.2kg≤M≤50kg
Sorting Capacity	4000 pieces per hour	6000 pieces per hour
Parcel Size Range	MAX:10001000700mm (Example for a 1-meter wide device) MIN:15015030mm
Sorting Success Rate	99.99%
Sorting Modes	Single-sided sorting / Double-sided sorting
Electric Drum Size	Drum length 85mm * Drum diameter 70mm
Conveying Speed	1-1.5m/s	1.2-2m/s
Number of Swing Mechanisms	Not less than 2	Not less than 5
Parcel Spacing	800mm	400mm
Operating Noise	≤72dB(A)

Key Features

Versatility

The swing wheel sorter features a flat surface made up of several small electric rollers. These rubber-coated rollers provide a broad area of flexible contact with the bottoms of items, ensuring a seamless and effective sorting operation. This design is particularly advantageous for handling a range of parcels, clothing, books, boxes, cartons, and soft packages.

Efficient Sorting

Utilizing electric rollers as its main conveying medium, the swing wheel sorter offers numerous benefits such as high load capacity, low noise, rapid speed, and smooth operation. By eliminating complex transmission mechanisms found in traditional systems, the swing wheel sorter enhances efficiency, achieving sorting rates of up to 6000 pieces per hour.

Compact Structure

The swing wheel sorter is distinguished by its straightforward design, stable framework, and minimal failure rates. The steering components are linked via articulated bearings, allowing for fine-tuning of the steering angle based on operational needs. Servo motors supply the steering power, ensuring quick responsiveness and smooth sorting processes.

Quick Installation and Removal

Both the single-group swing wheel and the single-row module utilize a standardized, modular design. The independent modules for conveying can be easily taken apart from the transmission components, enabling hassle-free disassembly and maintenance.

Applications

The swing wheel sorter is optimized for an efficient sorting process, making it ideal for handling various types of parcels, clothing, books, boxes, cartons, and soft packages. It is widely applied in:

Express delivery services and logistics hubs
E-commerce warehouses for processing numerous orders
Manufacturing production lines for raw materials management
Healthcare, food production, and renewable energy sectors

Advantages

Advanced Technology

The Realkey swing wheel sorter employs a sophisticated control system integrated with sensors to manage equipment operation based on package arrivals, ensuring optimal efficiency and energy conservation.

Precision Manufacturing

All components are produced using CNC precision machining, leading to meticulous assembly and fine-tuning. This results in equipment characterized by high accuracy, extended lifespan, low noise levels, and minimal maintenance costs.

Safety and Stability

Built to be durable and reliable, meeting advanced domestic standards for stability. Comprehensive protection measures are integrated into all operational components with thoughtful safety designs.

Reliability

With 17 years of experience in logistics conveyance and automated sorting, Realkey excels in providing sorting solutions tailored to customer needs, known for robust durability and trusted performance.
