| Brand Name: | Realkey |
| Model Number: | TTS-500SP |
| MOQ: | 1 |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Supply Ability: | The customized products need to be based on the specified plan. |
| Attribute | Value |
|---|---|
| Sorting Capacity | 10800p/h |
| Sorting Accuracy | 99.99% |
| Pitch | 500mm |
| Main Machine Power Consumption | 5.5KW/50 trays |
| Operating Noise | ＜72dB（A） |

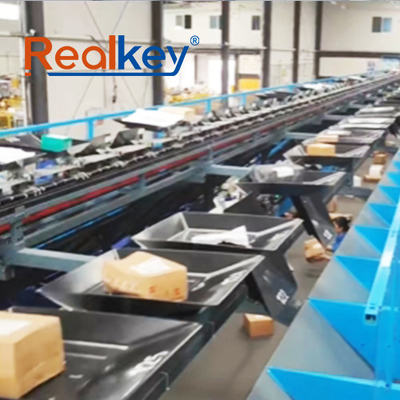

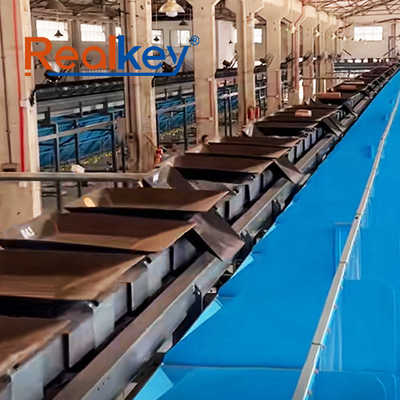

The Realkey Tilt Tray Sorter, also known as the Flip Tray Sorter, is a smart and adaptable sorting solution designed to help businesses reduce manual labor, streamline operations, and lower costs. Ideal for sorting small to medium-sized packages, this system is especially well-suited for high-volume, high-accuracy applications.
Built with modular flexibility and user customization in mind, the system integrates tray carriers, conveyor mechanisms, tilting arms, identification units, intelligent control panels, and precision-engineered tracks. Items are loaded onto trays--either manually or via automation--then conveyed on motorized carts along a horizontal track. Once the tray reaches its assigned destination, the tilting mechanism activates, gently and accurately directing the item into the correct chute.
| Equipment Model | TTS-500SL | TTS-500SH | TTS-500DL |
|---|---|---|---|
| Sorted Items | Small packages, envelopes, clothing, footwear, pharmaceuticals, etc. | ||
| Weight Range | 0.01kg ≤ W ≤ 5kg | 0.01kg ≤ W ≤ 15kg | 0.01kg ≤ W ≤ 5kg |
| Size Range | MAX: 500*400*400mm MIN: 50*50*1mm | ||
| Sorting Capacity | 7200-10800p/h | ||
| Sorting Accuracy | 99.99% | ||
| Supply Options | Manual/Automatic Supply Single-sided/Double-sided Supply Single-ended/Double-ended Supply | ||
| Loop Line Speed | Manual Supply: 1.0-1.5m/s, Automatic Supply: 1.0-2.0m/s, Configured according to efficiency requirements | ||
| Pitch | 500mm | ||
| Main Machine Power Consumption | 5.5KW/50 trays | ||
| Sorting Trigger | Pneumatic Control/Electric Control | Electric Control | |
| Operating Noise | <72dB (A) | ||
The Realkey Tilt Tray Sorter is used extensively across industries where speed, precision, and labor reduction are critical:
Its ability to automatically batch and sort small, lightweight, or uniquely shaped items makes it the ideal solution for retail restocking, omnichannel fulfillment, and returns processing. While highly versatile, tilt tray systems are not suited for fragile goods--Realkey recommends the RKSORT-NBS series for such applications.
The Realkey Tilt Tray Sorter empowers businesses to reduce labor costs, maximize throughput, and customize systems to fit their unique operational needs. Whether you're handling daily orders or scaling for seasonal peaks, this flexible solution makes automation easy and efficient.
Contact Realkey today for a customized consultation or to learn more about how our solutions can support your business goals.
