Efficient Automated Shipment Sorting Automated Sortation Systems Economical Highly Versatile

Efficient Automated Shipment Sorting Automated Sortation Systems Economical Highly Versatile

Brand Name:	Realkey
Model Number:	TTS-500SP
MOQ:	1
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P
Supply Ability:	The customized products need to be based on the specified plan.

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE EAC UL ISO

Weight Range:

0.01kg ≤ W ≤ 15kg

Size Range:

MAX: 500*400*400mm　MIN: 50*50*1mm

Sorting Capacity:

10800p/h

Sorting Accuracy:

99.99%

Pitch:

500mm

Main Machine Power Consumption:

5.5KW/50 Trays

Operating Noise:

＜72dB（A）

Sorting Trigger:

Electric Control

Packaging Details:

The customized products need to be based on the specified plan.

Highlight:

Efficient Automated Shipment Sorting

Efficient Automated Sortation Systems

Economical Automated Shipment Sorting

Product Description

Realkey Tilt Tray Sorter - Efficient, Economical and Highly Versatile

The Realkey Tilt Tray Sorter, also known as the Flip Tray Sorter, is a cost-effective and high-speed solution engineered for sorting small to medium-sized items with precision and efficiency. This smart, space-saving system is tailored for businesses seeking economical automation without sacrificing performance—perfect for industries dealing with high volumes of lightweight or irregularly shaped goods.

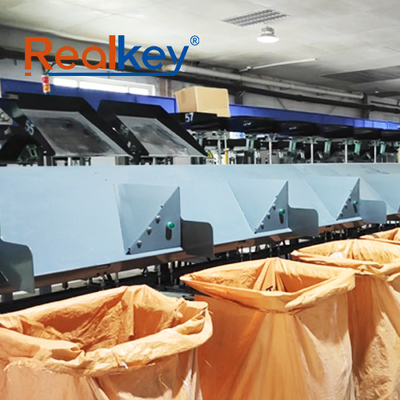

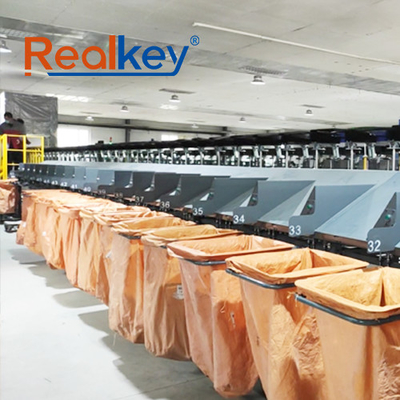

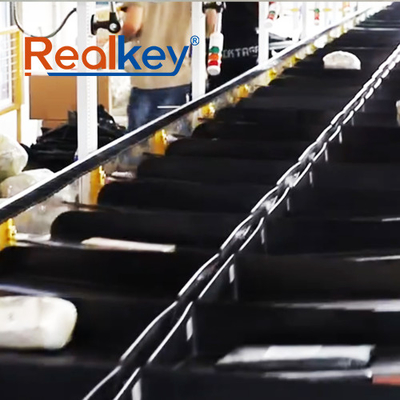

This sorter features a horizontal continuous conveying system comprising tray carriers, tilting mechanisms, identification systems, control units, conveyors, and track frames. Items are placed on trays mounted on motorized carts. As these carts travel along the track, the tilting mechanism is triggered at the destination, causing the items to slide gently into their assigned sorting chutes.

Technical Specifications

Attribute	Value
Weight Range	0.01kg ≤ W ≤ 15kg
Size Range	MAX: 500400400mm MIN: 50501mm
Sorting Capacity	10800p/h
Sorting Accuracy	99.99%
Pitch	500mm
Main Machine Power Consumption	5.5KW/50 trays
Operating Noise	＜72dB（A）
Sorting Trigger	Electric Control

Model Variations

Equipment Model	TTS-500SL	TTS-500SH	TTS-500DL
Sorted Items	Small packages, envelopes, clothing, footwear, pharmaceuticals, etc.
Weight Range	0.01kg ≤ W ≤ 5kg	0.01kg ≤ W ≤ 15kg	0.01kg ≤ W ≤ 5kg
Sorting Trigger	Pneumatic Control/Electric Control	Electric Control	Pneumatic Control/Electric Control

Key Performance Capabilities

Processing Capacity: Up to 10,800 items/hour, depending on model configuration
Product Compatibility: Handles parcels, envelopes, boxes, and even cylindrical or spherical items
Design Efficiency: Compact, low-maintenance, and designed for high-throughput operations

Application Scenarios

The Realkey Tilt Tray Sorter is used across diverse industries requiring precise, automated sorting of small and irregular items. Its flexible, adaptable design makes it a favorite in the following sectors:

Postal & Express Logistics
E-commerce Fulfillment
Apparel Distribution
Fresh Produce Logistics
Pharmaceuticals
Books, Magazines & Consumer Goods
Jewelry and Small Parts Distribution

Whether you're sorting returns, batch-picking items, or replenishing retail stock, tilt tray sorters excel in high-volume, consumer-focused distribution centers. However, for fragile items, Realkey recommends the RKSORT-NBS series, specifically engineered for gentle handling.

Advantages That Set Realkey Apart

✓

Heavy-Duty Tray Capacity: Our reinforced trays are built to endure tough logistics environments. Each tray can support up to 15 kg, making them suitable for both lightweight parcels and moderately heavy items.

✓

Customizable Tray Designs: Realkey offers V-shaped and other customized trays to prevent rolling or shifting—ideal for cylindrical, spherical, or uniquely shaped products. Whatever the item, as long as it fits in the tray, the system can sort it.

✓

Safety-First Engineering: Operator safety is paramount. All trays are edge-free, and protective features are thoughtfully integrated to prevent accidents during operation or maintenance.

✓

Proven Reliability: With 18 years of experience in the logistics and automation industry, Realkey delivers field-tested reliability and tailored system solutions for clients across more than 20 countries. Our systems are known for long service life and low maintenance requirements.

Designed with cost-efficiency, speed, and adaptability in mind, the Realkey Tilt Tray Sorter empowers businesses to optimize their operations without overspending. It's the perfect balance between affordability and advanced automation.

Contact us today for a customized quote or system consultation. Let Realkey take your sorting efficiency to the next level.
