Automatic Package Sorting System Warehouse Sorting Systems Heavy Duty Tray Safety Design

Automatic Package Sorting System Warehouse Sorting Systems Heavy Duty Tray Safety Design

Brand Name:	Realkey
Model Number:	RKSORT-TTS
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Breaking The Traditional Manual Sorting Mode Of Special-Shaped Parts

Highlight:

Automatic Package Sorting System

Automatic Warehouse Sorting Systems

Safety Package Sorting System

Product Description

Automatic Package Sorting System Warehouse Sorting Systems Heavy Duty Tray Safety Design

Product Specifications

Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Breaking The Traditional Manual Sorting Mode Of Special-Shaped Parts

Product Description

The Tilt Tray Sorter developed by Realkey is a practical and economical device designed to efficiently handle the sorting of small and medium-sized packages. This advanced sorting solution is tailored to meet the needs of a variety of industries.

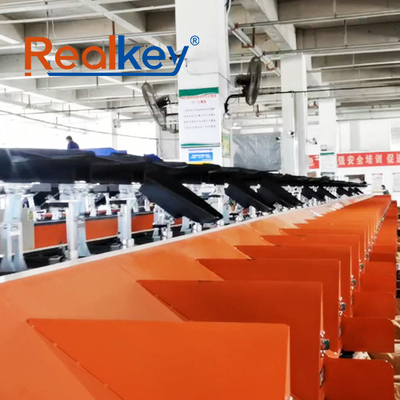

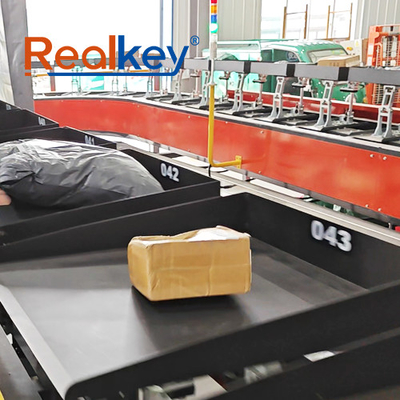

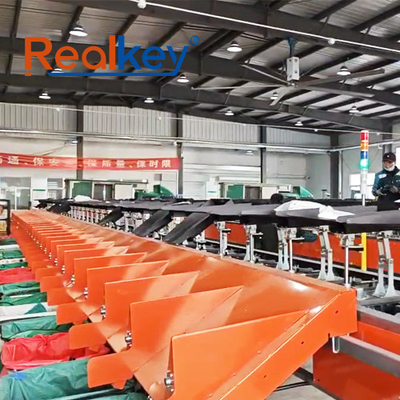

The tilt tray sorter includes essential components such as tray carriers, conveying systems, tilting mechanisms, identification systems, control units, and track frames, all functioning together through horizontal continuous conveying. Items are placed on trays that sit atop motorized carts, which navigate along the designated track.

This sorter is notable for its versatility, capable of managing a wide range of items, from parcels and boxes to envelopes and even cylindrical or spherical products that are difficult to sort with traditional machines.

Technical Parameters

Equipment Model	TTS-500SP	TTS-500DE
Sorted Items	Small packages, envelopes, clothing, footwear, pharmaceuticals, etc.
Weight Range	0.01kg ≤ M ≤ 15kg	0.01kg ≤ M ≤ 5kg
Size Range	MAX:400400600mm MIN:50502mm	MAX:400400500mm MIN:50502mm
Sorting Capacity	7200-10800p/h
Sorting Accuracy	99.90%
Supply Options	Manual/Automatic Supply Single-sided/Double-sided Single-ended/Double-ended Supply
Loop Line Speed	Manual Supply: 1.0-1.5m/s Automatic Supply: 1.0-2.0m/s Configured according to efficiency requirements
Pitch	500mm
Overall Dimension	Elliptical Width: 3.4m (excluding chutes) Elliptical Length: To be confirmed according to the scheme	Elliptical Width: 3.2m (excluding chutes) Elliptical Length: To be confirmed according to the scheme
Main Machine Power Consumption	5.5KW/50 trays
Sorting Trigger	Pneumatic Control	Electric Control
Operating Noise	＜72dB(A)

Applications

The tilt tray sorter is widely adopted in various scenarios that require automated sorting of items. Its applications span across postal services, express delivery, e-commerce, apparel, books and periodicals, daily essentials, fresh produce, pharmaceuticals, and jewelry.

Tilt tray sorters are particularly effective in high-volume consumer-facing distribution centers, facilitating the batch selection and sorting of small products for specific orders. This includes e-commerce merchandise, retail apparel, omnichannel logistics, third-party logistics, store replenishment, and returns processing.

Key Advantages

Heavy-Duty Tray Option: Our heavy-duty trays are specifically engineered for demanding conditions, able to withstand loads up to 15 kilograms.
Personalized Tray Design: Custom tray designs available to accommodate specific product characteristics, including V-shaped trays for cylindrical items.
Safety Design: Features tray designs without sharp edges and includes protective devices for operator safety.
Reliability: Backed by 17 years of experience in logistics conveyance and automated sorting, ensuring durable and reliable performance.
