| Brand Name: | Realkey |
| Model Number: | RKSORT-NBS |
| MOQ: | 1 unit |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Custom Order | Accept |
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Large And Small Pieces Can Be Sorted At The Same Time |

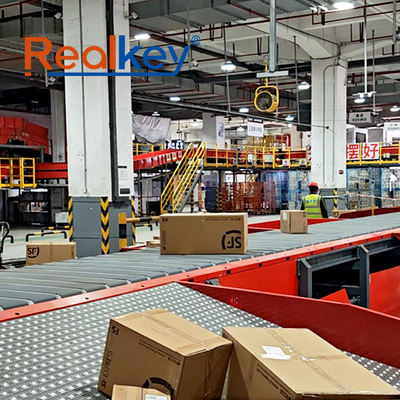

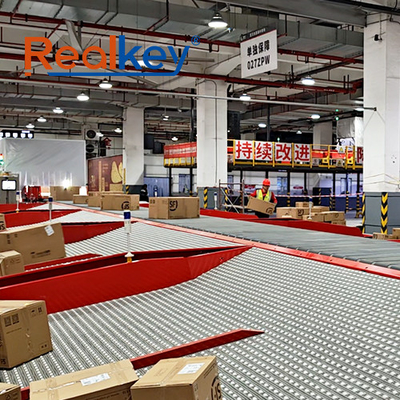

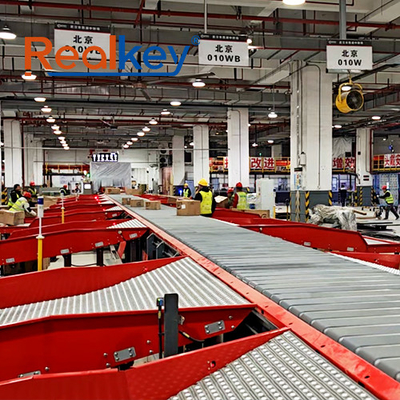

The Narrow Belt Sorter (RKSORT-NBC) is a highly efficient and reliable solution for sorting items of all sizes, including parcels and cartons, particularly those requiring gentle handling like fresh produce. This system combines narrow belt carts, drive systems, structural frames, recognition technologies, and communication frameworks to deliver exceptional sorting performance.
With a mainline conveying speed of up to 2.5 meters per second, this sorter achieves a capacity of approximately 8000 items per hour. Ideal for postal services, e-commerce logistics, and supermarket distribution centers.
| Sorted Items | Various parcels, cartons, foam boxes, woven bags, flexible packages |
| Weight Range | 0.3kg ≤ M ≤ 60kg |
| Sorting Capacity | 8000p/h |
| Parcel Size Range | MAX: 1200*1000*1000mm MIN: 150*150*15mm |
| Effective Equipment Width | 1000mm |
| Sorting Success Rate | 99.99% |
| Cart Pitch | 203mm |
| Feeding Method | Automatic loading at the head end |
| Conveying Speed | 1.5-2.5m/s |
| Minimum Height of Sorter | 850mm |
| Operating Noise | ≤78dB(A) |
