Automatic Narrow Belt Sorter Robust Dependable For Manufacturing Industries

Automatic Narrow Belt Sorter Robust Dependable For Manufacturing Industries

Brand Name:	Realkey
Model Number:	RKSORT-NBS
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Large And Small Pieces Can Be Sorted At The Same Time

Highlight:

Automatic Narrow Belt Sorter

Automatic high speed sorting conveyor

Robust Narrow Belt Sorter

Product Description

Automatic Narrow Belt Sorter - Robust Dependable Solution for Manufacturing Industries

Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Large And Small Pieces Can Be Sorted At The Same Time

Fast Order Processing Capabilities Narrow Belt Sorter Simplifies Operational Complexity

The Narrow Belt Sorter (RKSORT-NBC) presents a highly effective and dependable option for sorting a variety of items, including parcels and cartons. It is particularly suited for packages with lower impact tolerances, such as fresh produce. This sorter boasts distinct benefits that enhance its operational capabilities.

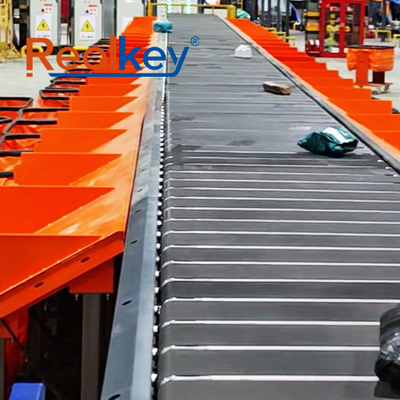

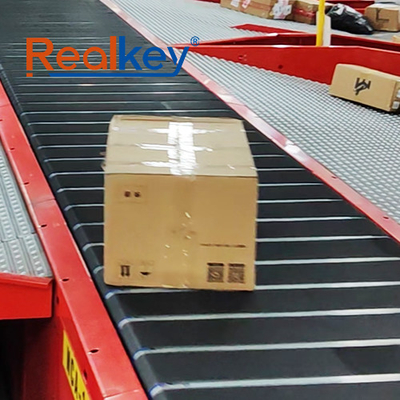

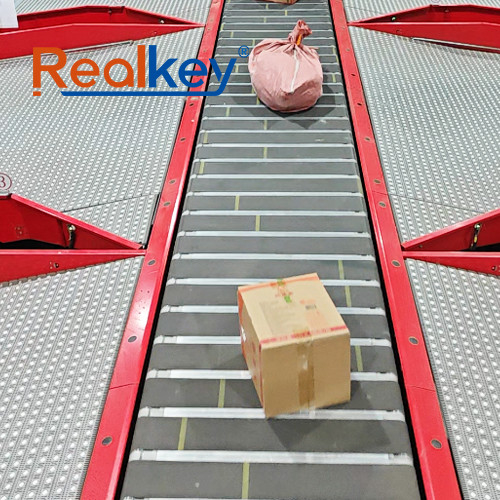

This sorting system is primarily comprised of narrow belt carts, drive mechanisms, structural frames, recognition systems, and communication interfaces. A series of narrow belt carts are linked together to create an extended sorting line. The mainline conveyor speed can reach 2.5 meters per second, achieving a sorting capacity of up to 8000 items per hour. Narrow belt sorters are commonly utilized in diverse settings, such as postal services, e-commerce logistics, and supermarket distribution centers.

Technical Parameters

Parameter	Value
Sorted Items	Various parcels, cartons, foam boxes, woven bags, flexible packages, etc.
Weight Range	0.3kg≤M≤60kg
Sorting Capacity	8000p/h
Parcel Size Range	MAX:120010001000mm MIN:15015015mm
Effective Equipment Width	1000mm
Sorting Success Rate	99.99%
Cart Pitch	203mm
Feeding Method	Automatic loading at the head end
Conveying Speed	1.5-2.5m/s
Minimum Height of Sorter	850mm
Operating Noise	≤78dB(A)

Product Features

Strong Applicability

The narrow belt sorter features a linear arrangement that minimizes spatial requirements while demonstrating significant versatility. With a conveyor medium consisting of narrow belt conveyors (measuring only 174mm in width) and minimal spacing between adjacent belts (under 30mm), it effectively sorts nearly all standard parcel sizes. It excels particularly in handling foam boxes, delicate items, and larger parcels (up to 2 meters in length). Few devices can rival its effectiveness in sorting oversized or heavy items.

Efficient Sorting

Items sorted through this system do not require manual spacing, allowing for a streamlined arrangement. The narrow belt sorter automatically adjusts the movements of one or more narrow belt carts according to the dimensions of the items, enabling simultaneous sorting of variously sized products. With minimal inter-item spacing, sorting efficiency can reach up to 8000 items per hour.

Advanced Technology

Powered by linear motors, the mainline of the narrow belt sorter drives carts equipped with electric drum motors, with power delivered through sliding contacts and communication via infrared wireless technology. Sorting commands are transmitted from the infrared transceiver controller at the chute to the electric drum motor driver on the cart, which then actuates the cart belt for sorting.

Customized Solutions

Realkey narrow belt sorters offer tailored solutions for users. With a modular design, adjustments can easily be made to existing equipment to meet evolving user needs, such as adding guides and carts to expand sorting capabilities. Depending on specific requirements, both automatic and manual feeding options are available, along with single-sided or multi-sided scanning. This high level of customization aligns closely with users' operational demands, alleviating concerns during usage.

Durable and Easy to Maintain

Realkey's linear narrow belt sorters feature independently designed electric drum units that allow for modular assembly, enabling separate disassembly and repair of each unit. This design simplifies operations and maintenance, significantly reducing long-term maintenance costs for users.

Applications

Postal and Express Delivery: Accurately recognizes and sorts various parcel types, sizes, and shapes efficiently to their respective destinations.
E-commerce Picking: Enables quick and precise item picking, enhancing logistics performance and reducing delivery times.
Fresh Produce Delivery: Gentle sorting actions make it ideal for handling fresh produce, fruits, vegetables, and beverages requiring minimal impact.
Specific Manufacturing Industries: Combined with visual recognition technology, automatically sorts components to designated processing areas.

Advantages

Advanced Design: Linear motor drive system reduces equipment failures and eliminates oil contamination issues.
Precision Manufacturing: CNC precision machining ensures high precision, longevity, and low maintenance costs.
Safety and Stability: Robust construction with comprehensive protective measures for reliable operation.
Reliability: 17 years of experience in logistics handling ensures durable and dependable sorting solutions.
