Flexible Parcel Sorting Conveyor Low Maintenance With Multiple Recognition Technologies

Flexible Parcel Sorting Conveyor Low Maintenance With Multiple Recognition Technologies

Brand Name:	Realkey
Model Number:	RKSORT-NBS
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Large And Small Pieces Can Be Sorted At The Same Time

Highlight:

Flexible Parcel Sorting Conveyor

Flexible conveyor belt sorter

Low Maintenance Parcel Sorting Conveyor

Product Description

Flexible Parcel Sorting Conveyor Low Maintenance With Multiple Recognition Technologies

Product Specifications

Attribute	Value
Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Large And Small Pieces Can Be Sorted At The Same Time

Product Overview

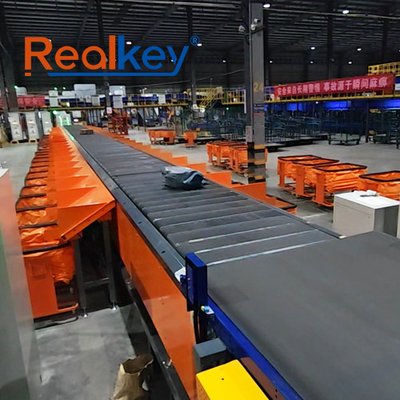

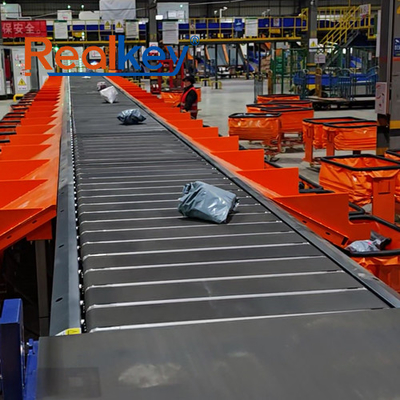

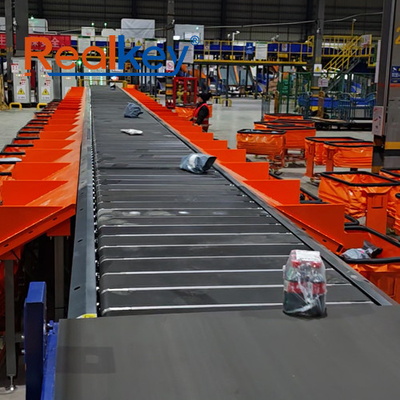

The Narrow Belt Sorter is an advanced solution designed for efficient sorting of various items including parcels and cartons, particularly in low-impact scenarios like fresh produce handling. This system streamlines logistics operations with its innovative design and high performance.

Core Components

Narrow Belt Carts: Connected in sequence to create extensive sorting lines
Drive Systems: Ensure smooth and reliable operation
Machine Frames: Provide structural support and stability
Recognition Systems: Enhance sorting accuracy and efficiency
Communication Systems: Facilitate seamless component interaction

With a mainline conveying speed up to 2.5 meters per second and sorting capacity of 8000 items per hour, this system is ideal for postal services, e-commerce logistics, and supermarket distribution.

Technical Parameters

Parameter	Specification
Sorted Items	Parcels, cartons, foam boxes, woven bags, flexible packages
Weight Range	0.3kg ≤ M ≤ 60kg
Sorting Capacity	8000p/h
Parcel Size Range	MAX: 120010001000mm MIN: 15015015mm
Effective Equipment Width	1000mm
Sorting Success Rate	99.99%
Cart Pitch	203mm
Feeding Method	Automatic loading at the head end
Conveying Speed	1.5-2.5m/s
Minimum Height of Sorter	850mm
Operating Noise	≤78dB(A)

Key Features

Strong Applicability

Compact linear layout with 174mm wide narrow belt conveyors and small gaps under 30mm can sort nearly all common parcel sizes simultaneously, excelling with oversized or fragile items.

Efficient Sorting

No manual spacing required between items. The system automatically adjusts narrow belt cart movements based on item sizes, enabling simultaneous sorting of various dimensions for maximum efficiency.

Advanced Technology

Powered by linear motors with electric drum motors for carts. Features sliding contact power supply and infrared wireless communication for precise sorting actions based on real-time instructions.

Customized Solutions

Modular design allows easy modifications like adding guides and carts to expand capabilities, with options for automatic or manual feeding to meet specific operational needs.

Durability and Low Maintenance

Independently designed electric drum units enable modular assembly, simplifying maintenance and repairs while significantly reducing long-term costs.

Applications

Postal and Express Delivery: Efficiently manages diverse parcels with accurate sorting and timely distribution
E-commerce Picking: Enhances logistics efficiency for quick, accurate picking with reduced delivery times
Fresh Produce Handling: 850mm height ensures gentle handling of fruits and vegetables
Specialized Manufacturing: Automatically classifies components by size and shape to improve production efficiency

Competitive Advantages

Innovative Design

Replaces traditional chain-driven systems with linear motor design, minimizing mechanical failures and eliminating oil contamination issues.

Precision Engineering

CNC precision machining ensures high quality, durability, and low maintenance with minimal operational noise.

Safety and Reliability

Robust design adheres to high industry standards with comprehensive safety measures for operator protection.

Established Expertise

17 years of experience in logistics and automatic sorting delivers dependable, effective solutions across diverse applications.
