High Performance Narrow Belt Sorter Automated For Wide Applications

High Performance Narrow Belt Sorter Automated For Wide Applications

Brand Name: Realkey
Model Number: RKSORT-NBS
MOQ: 1 unit
Price: USD 10000/Piece
Payment Terms: L/C,T/T,D/P
Detail Information
Place of Origin:
China
Certification:
CE/EAC/UL/ISO
Custom Order:
Accept
OEM/ODM:
Accept
Fatory:
Direct Factory With Own Exporting Platform
Feature:
Large And Small Pieces Can Be Sorted At The Same Time
Highlight:

High Performance Narrow Belt Sorter

,

High Performance automated sortation systems

,

Automated Narrow Belt Sorter

Product Description
High Performance Narrow Belt Sorter Automated For Wide Applications
Product Specifications
Attribute Value
Custom Order Accept
OEM/ODM Accept
Factory Direct Factory With Own Exporting Platform
Feature Large and small pieces can be sorted at the same time
Product Description
High Efficiency Sorting Narrow Belt Sorter Fast Processing Of Bulk Goods

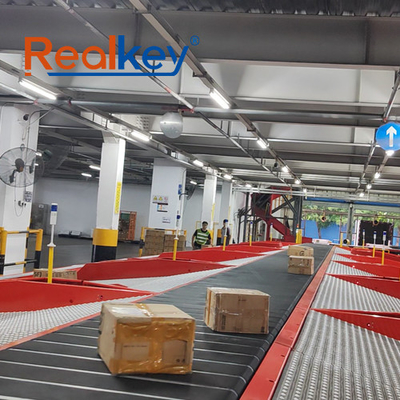

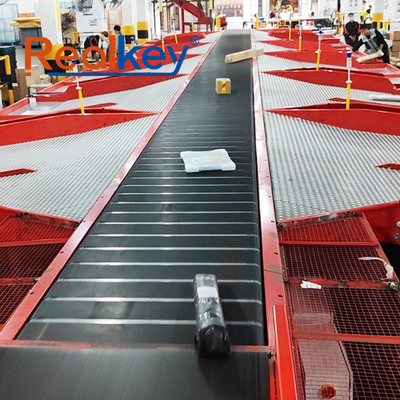

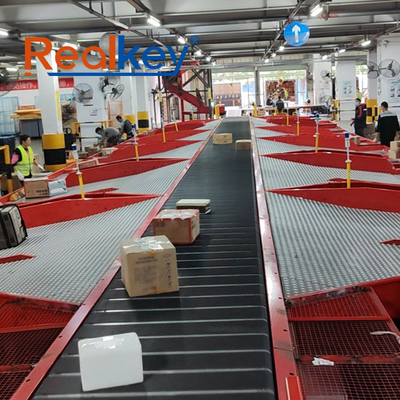

The Narrow Belt Sorter (RKSORT-NBC) provides an efficient and reliable solution for sorting items of various sizes, including parcels and cartons, particularly for packages with lower impact requirements like fresh produce. This system offers unique advantages for gentle handling applications.
The narrow belt sorter consists of narrow belt carts, drive systems, machine frames, recognition systems, and communication systems. Multiple carts connect sequentially to form a long sorting line with a mainline conveying speed up to 2.5 meters per second and sorting efficiency reaching 8000 items per hour. Ideal for postal/express delivery, e-commerce logistics, and supermarket distribution centers.
Technical Parameters
Parameter Specification
Sorted Items Parcels, cartons, foam boxes, woven bags, flexible packages
Weight Range 0.3kg ≤ M ≤ 60kg
Sorting Capacity 8000p/h
Parcel Size Range MAX: 1200*1000*1000mm
MIN: 150*150*15mm
Effective Equipment Width 1000mm
Sorting Success Rate 99.99%
Cart Pitch 203mm
Feeding Method Automatic loading at the head end
Conveying Speed 1.5-2.5m/s
Minimum Height of Sorter 850mm
Operating Noise ≤78dB(A)
Key Features
  • Strong Applicability: Linear layout with minimal footprint. Handles parcels from 150mm to 2m long with 174mm wide belts and <30mm gaps between them.
  • Efficient Sorting: Processes up to 8000 items/hour without manual spacing requirements.
  • Advanced Technology: Linear motor mainline drive with electric drum motors for carts, powered via sliding contacts with infrared wireless communication.
  • Customized Solutions: Modular design allows for easy modifications including additional guides, carts, and feeding options.
  • Durable Design: Modular electric drum units enable easy maintenance and reduce long-term costs.
Applications
  • Postal/Express Delivery: Accurately sorts diverse parcel types to different destinations.
  • E-commerce Picking: Improves logistics efficiency for varied product packaging.
  • Fresh Produce Delivery: Gentle 850mm height sorting ideal for fragile items.
  • Manufacturing: Automates parts sorting in production lines when combined with visual recognition.
Competitive Advantages
  • Advanced Design: Linear motor drive eliminates chain mechanisms, reducing failures and oil contamination.
  • Precision Manufacturing: CNC-machined components ensure high precision and longevity.
  • Safety Focus: Comprehensive protection measures and thoughtful safety designs.
  • Proven Reliability: 17 years of sorting solution expertise with durable, trusted products.
