| Brand Name: | Realkey |
| Model Number: | RKSORT-CBS |
| MOQ: | 1 unit |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Attribute | Value |
|---|---|
| Custom Order | Accept |
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Flexible sorting of multiple sizes and directions |
| Special Feature | 12000 to 15000 tickets/hour |
| Speed | adjustable within the range of 2.0-2.5m/S |
| Warranty | 1 Year |
| Dimension(L*W*H) | Customization |
| Recognition rate | 99.99% |
| Certification | CE/ROHS/ISO9001/ECM |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works, Other, Logistics Transportation Sorting |
| Material Feature | Fire Resistant |
| Aftersales support | Install instruction, video support, on-line guidance |
| After-sales Service Provided | Online Support Video Technical Support |
| Trademark | ODM & OEM |
| HS Code | 8479894000 |
| Bar-code reading | >99.99% |
| Noise | <72BD |
High-Speed Automated E-commerce Cross Belt Sorter Accurate Efficient Streamlined

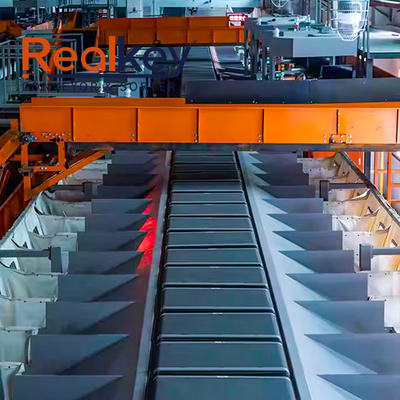

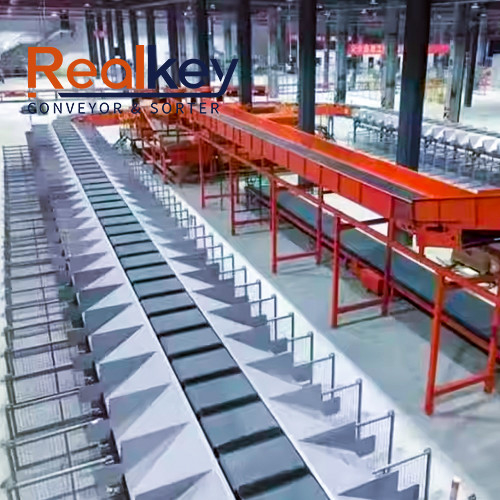

The circular cross belt sorter uses the motor to drive the car queue connected head and tail to move at high speed along the circular track. Each trolley has an independent power driven conveyor belt. The conveyor belt can move vertically with the trolley running direction. The goods with barcode are led into the trolley from the package supply platform, locate the destination after scanning by the identification system. Trolley belt rotates when arriving at the designated place, unloading the goods to the unloading port to complete the sorting action. The cross belt sorter has efficient and accurate processing capacity, especially applicable to express logistics, e-commerce and distribution centers.
| Equipment Name | Circular Cross Belt Sorter | Linear Cross Belt Sorter | Linear Cross Belt Sorter |
|---|---|---|---|
| Model | CBS-600C | CBS-500L | CBS-300L |
| Sorted Items | Various parcels, cartons, clothing, books, etc. | ||
| Cart Pitch | 600mm | 500mm | 300mm |
| Sorting Accuracy | 99.99% | ||
| Sorting Efficiency | 22,000 pcs/hour | 6,000 pcs/hour | 8,000 pcs/hour |
| Feeding Method | Manual loading /Automatic loading from feeding station | ||
| Sorted Goods Size | MAX: 700×600×500mm MIN: 150×150×8mm |
||
| Scanning Method | Top scan / Three-phase five-sided scan / Six-sided scan | ||
| Sorted Goods Weight | 0.03kg ≤ W ≤ 20kg | 0.03kg ≤ W ≤ 20kg | 0.1kg ≤ W ≤ 30kg |
| Operating Speed | 2.0m/s | 1.5m/s | 1.5m/s |
| Operating Noise | ≤72dB(A) | ||
