| Brand Name: | Realkey |
| Model Number: | RKSORT-CBS |
| MOQ: | 1 unit |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Custom Order | Accept |
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Flexible sorting of multiple sizes and directions |
| Special Feature | 12000 to 15000 tickets/hour |
| Speed | Adjustable within the range of 2.0-2.5m/S |
| Warranty | 1 Year |
| Dimension (L*W*H) | Customization |
| Recognition rate | 99.99% |
| Certification | CE/ROHS/ISO9001/ECM |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works, Logistics Transportation Sorting |
| Material Feature | Fire Resistant |
| Aftersales support | Install instruction, video support, on-line guidance |
| After-sales Service | Online Support, Video Technical Support |

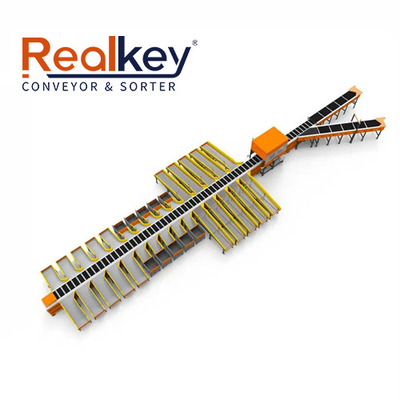

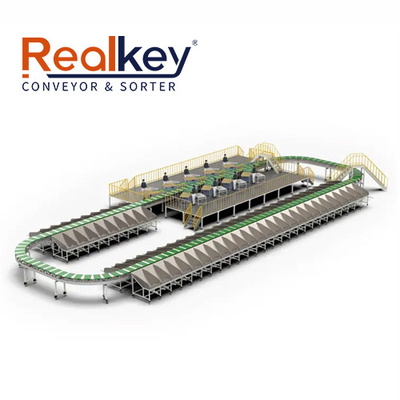

The Realkey Cross Belt Sorter is a cutting-edge system designed for precise sorting of parcels and cartons. It combines tracks, carts, cross-aligned belts, recognition, and communication technologies into an efficient sorting solution. Carts are linked in a continuous chain with perpendicular belts ("Cross Belt") to carry items, which can be loaded manually or automatically.
| Equipment Name | Circular Cross Belt Sorter | Linear Cross Belt Sorter | Linear Cross Belt Sorter |
|---|---|---|---|
| Model | CBS-600C | CBS-500L | CBS-300L |
| Sorted Items | Various parcels, cartons, clothing, books, etc. | ||
| Cart Pitch | 600mm | 500mm | 300mm |
| Sorting Accuracy | 99.99% | ||
| Sorting Efficiency | 22,000 pcs/hour | 6,000 pcs/hour | 8,000 pcs/hour |
| Feeding Method | Manual loading / Automatic loading from feeding station | ||
| Sorted Goods Size | MAX: 700×600×500mm MIN: 150×150×8mm |
||
| Scanning Method | Top scan / Three-phase five-sided scan / Six-sided scan | ||
| Sorted Goods Weight | 0.03kg ≤ W ≤ 20kg | 0.03kg ≤ W ≤ 20kg | 0.1kg ≤ W ≤ 30kg |
| Operating Speed | 2.0m/s | 1.5m/s | 1.5m/s |
| Operating Noise | ≤72dB(A) | ||
Designed for small to medium parcels, the cross belt sorter supports a broad range of weights and volumes common in express and e-commerce logistics. With multiple chutes and stable performance, it's a globally proven solution backed by robust, established technology.
This system delivers steady operation and high capacity, sorting cartons, envelopes, clothing, film-wrapped goods, books, and more. Customizable specs and chute sizes (e.g., 600mm, 700mm, 750mm, 1000mm) adapt to site needs.
Tailored to user needs, the sorter supports manual loading or automated platforms for scanning, weighing, and loading. Basic training enables workers to operate it swiftly, enhancing workflow efficiency.
With standardized components and a lightweight build, the sorter accelerates production, transport, assembly, and commissioning. Modular designs streamline maintenance, boosting equipment availability.
Its high sorting efficiency eases operator demands, optimizes workforce allocation, reduces labor and management costs, and drives business growth through streamlined processes.
Cross belt sorters thrive in regional hubs, transfer centers, and large postal or courier facilities with intense sorting volumes. As labor costs rise, linear models are favored for their space-saving, adaptable setups, boosting productivity.
E-commerce surges during peak seasons require flexible sorting. Cross belt sorters excel, supporting industries like fashion, electronics, baby products, grocery, and pharmaceuticals with efficient operations.
Realkey's sorters can incorporate advanced vision tech to track carts in real time, isolating faulty ones to avoid errors and sending rapid alerts to minimize downtime (requires auto-feeding).
Realkey's algorithms enable single carts for small parcels and paired carts for items up to 1.2 meters, providing cost-effective adaptability and performance.
The interface directs carts to maintenance areas autonomously, minimizing manual effort and enhancing upkeep efficiency.
With 18 years of logistics automation expertise, Realkey crafts durable, reliable sorting solutions, earning trust as a steadfast industry partner.
