| Brand Name: | Realkey |
| Model Number: | RKSORT-CBS |
| MOQ: | 1 unit |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Custom Order | Accept |
|---|---|
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Flexible sorting of multiple sizes and directions |

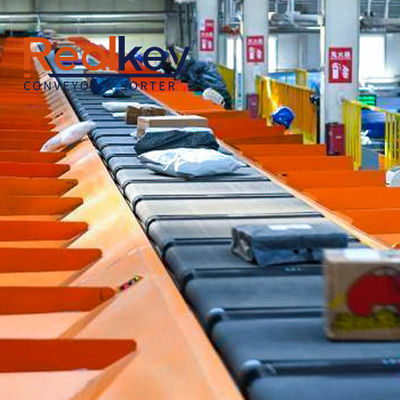

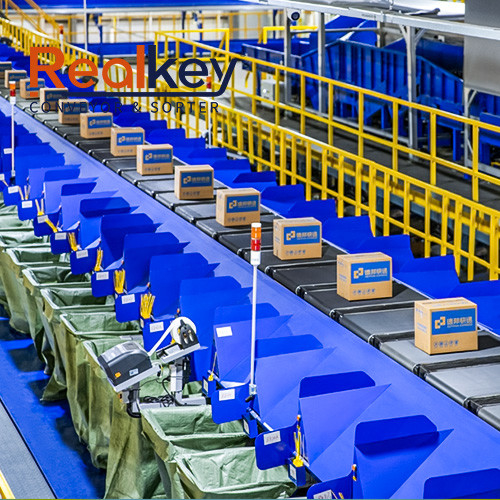

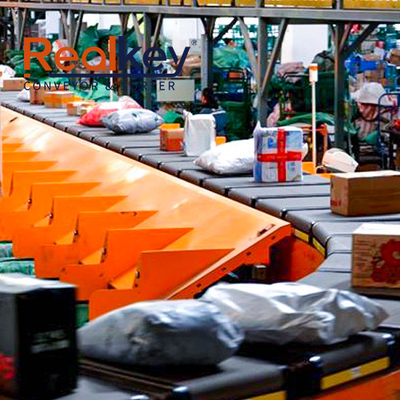

The Realkey Cross Belt Sorter is a sophisticated system for sorting parcels and cartons with precision. It integrates tracks, carts, cross belts, recognition, and communication technology. Carts, chained along the track, use perpendicular belts--hence "Cross Belt"--to transport items, loaded manually or automatically. At sorting stations, belts activate to ensure accurate placement.
Available in circular or linear formats, these sorters perform exceptionally. Circular models achieve 2 meters per second, handling 22,000 items per hour, while linear ones reach 1.5 meters per second, sorting 8,000 items hourly. They're perfect for high-throughput, multi-directional sorting in courier services, e-commerce, fashion, food, cosmetics, airports, and pharmaceuticals.
| Equipment Name | Circular Cross Belt Sorter | Linear Cross Belt Sorter | Linear Cross Belt Sorter |
|---|---|---|---|
| Model | CBS-600C | CBS-500L | CBS-300L |
| Sorted Items | Various parcels, cartons, clothing, books, etc. | ||
| Cart Pitch | 600mm | 500mm | 300mm |
| Sorting Accuracy | 99.99% | ||
| Sorting Efficiency | 22,000 pcs/hour | 6,000 pcs/hour | 8,000 pcs/hour |
| Feeding Method | Manual loading / Automatic loading from feeding station | ||
| Sorted Goods Size | MAX: 700×600×500mm MIN: 150×150×8mm |
||
| Scanning Method | Top scan / Three-phase five-sided scan / Six-sided scan | ||
| Sorted Goods Weight | 0.03kg ≤ W ≤ 20kg | 0.03kg ≤ W ≤ 20kg | 0.1kg ≤ W ≤ 30kg |
| Operating Speed | 2.0m/s | 1.5m/s | 1.5m/s |
| Operating Noise | ≤72dB(A) | ||
