High Capacity Versatile Warehouse Conveyor Belt Systems Linear Crossbelt Sorter

Name: High Capacity Versatile Warehouse Conveyor Belt Systems Linear Crossbelt Sorter
Brand: QINGDAO REALKEY MACHINERY CO.， LTD
SKU: RKSORT-CBS
Price: 10000 USD
Availability: InStock

Brand Name:	Realkey
Model Number:	RKSORT-CBS
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Flexible Sorting Of Multiple Sizes And Directions

Highlight:

Versatile Warehouse Conveyor Belt Systems

Versatile Linear Crossbelt Sorter

High Capacity Linear Crossbelt Sorter

Product Description

High Capacity Versatile Warehouse Conveyor Belt Systems Linear Crossbelt Sorter

Attribute	Value
Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Flexible sorting of multiple sizes and directions

Product Description

High Processing Capacity Cross Belt Sorter Dual-Cart Linkage Efficient Logistics

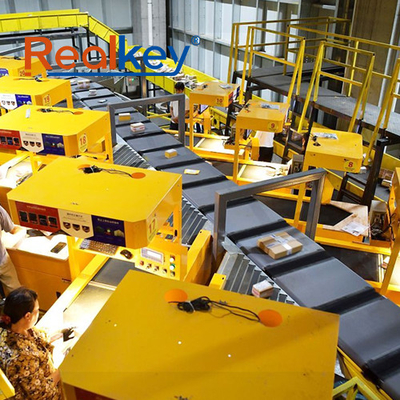

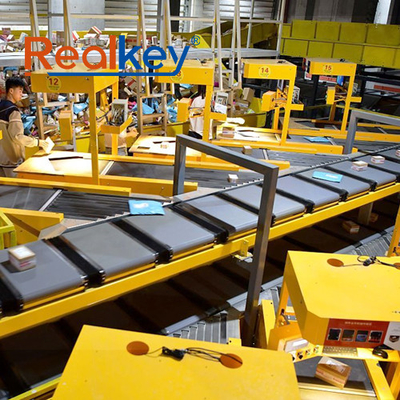

The Cross Belt Sorter (RKSORT-CBS) is a highly efficient solution designed specifically for sorting parcels and cartons of various dimensions. The system consists of critical components, including tracks, carts, cart belts, recognition systems, and communication networks.

The carts are aligned in a continuous line on the track, moving in parallel to create the mainline, which intersects with the belts on the carts, leading to its designation as the "Cross Belt Sorter." Items can be placed on the cart belts either manually or through automated systems. At designated sorting points, the control system activates the belts to sort and dispatch the items.

Cross belt sorters are available in two main configurations: circular and linear. Circular cross belt sorters feature a flat circular design, achieving a mainline speed of up to 2 meters per second and sorting capabilities of up to 22,000 items per hour. In contrast, linear cross belt sorters utilize a straight layout, operating at speeds up to 1.5 meters per second and capable of sorting 8,000 items per hour.

Technical Parameters

Equipment Name	Circular Cross Belt Sorter	Linear Cross Belt Sorter
Sorted Items	Various parcels, cartons, clothing, books, etc.
Cart Pitch	600mm	500mm
Sorting Accuracy	99.99%
Operating Noise	≤72dB(A)
Feeding Method	Manual loading / Automatic loading from feeding station
Sorted Goods Size	MAX:700600500mm MIN:1501508mm
Scanning Method	Top scan / Three-phase five-sided scan / Six-sided scan
Sorted Goods Weight	0.03kg≤M≤20kg	0.1kg≤M≤30kg
Operating Speed	2.0m/s	1.5m/s
Sorting Efficiency	22000 pieces per hour	8000 pieces per hour

Product Features

Proven and Reliable

The cross belt sorting system is particularly effective for sorting small to medium-sized parcels, accommodating the specifications of most express and e-commerce package types. It provides multiple sorting chutes and exhibits high flexibility.

Versatile Applications

The cross belt sorting system is robust and offers a high capacity for processing various items. It can effectively sort cartons, envelopes, parcels, clothing, and products packaged in plastic film.

Simplified Loading Operations

Depending on user workflows and requirements, the cross belt sorting system can be loaded manually or equipped with an automatic feeding platform for scanning, weighing, and loading.

Modular Design

The cross belt sorting system benefits from standardized components and a lightweight design, ensuring efficiency throughout production, transport, assembly, and commissioning.

Cost-Effective Operations

With high sorting efficiency, the cross belt sorter significantly reduces operator workloads, optimizing human resource allocation and lowering labor and management costs for businesses.

Applications

Postal and Express Delivery

Cross belt sorting machines are widely utilized in regional distribution centers, transfer stations, and medium to large branches of postal and express delivery companies.

E-Commerce and Cross-Border Shipping

The rapid growth of e-commerce has resulted in significant increases in parcel volumes during peak shopping seasons. Cross belt sorting machines provide efficient sorting solutions to meet the diverse demands of various industries.

Advantages

Vision Inspection Technology

Realkey cross belt sorting machines can be equipped with intelligent vision inspection capabilities tailored to specific user needs. This feature enables real-time tracking and fault detection for all operational carts.

Dual-Cart Linkage Technology

Realkey's advanced recognition technology and programming allow for the simultaneous transport and sorting of small parcels by one cart and larger parcels by two carts into sorting chutes.

Automatic Fault Management

When maintenance is required for a cart, users can initiate commands through the interface, prompting the cart to automatically navigate to a designated maintenance station.

Reliability

With 17 years of experience in logistics conveyance and automatic sorting, Realkey has distinct advantages in formulating sorting solutions for clients.
