Large Retail Warehousing Sorter Cross Belt Type Conveyor Sortation Systems OEM/ODM

Brand Name:	Realkey
Model Number:	RKSORT-CBS
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Flexible Sorting Of Multiple Sizes And Directions

Highlight:

OEM Warehousing Sorter

Cross Belt Conveyor Sortation Systems

ODM Conveyor Sortation Systems

Product Description

Large Retail Warehousing Sorter Cross Belt Type Conveyor Sortation Systems OEM/ODM

Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Flexible sorting of multiple sizes and directions

Large Retail Warehouses Cross Belt Sorter Enhance Overall Sorting Efficiency

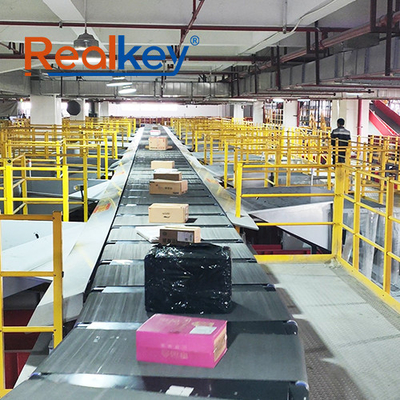

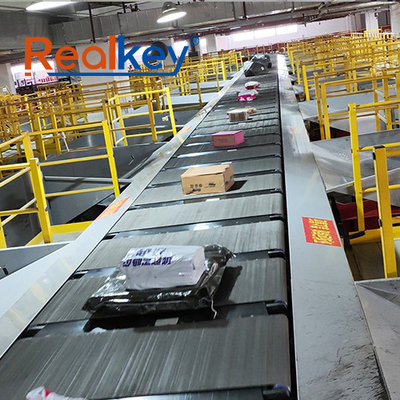

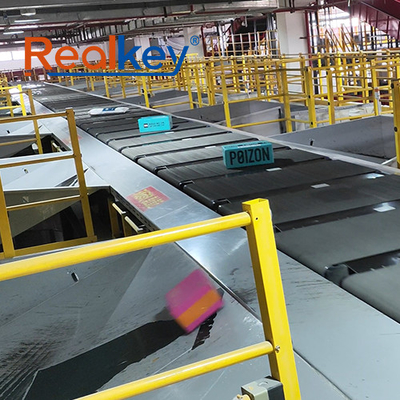

The Realkey Cross Belt Sorter is a state-of-the-art solution designed for the effective handling of a variety of items, including parcels and cartons. This sophisticated system integrates key components such as tracks, carts, cart belts, recognition technology, and communication systems. The carts are arranged in a continuous chain along a track, moving in parallel to form a mainline that intersects with the cart belts, giving rise to the name "Cross Belt Sorter." Items can be loaded onto the cart belts either manually or automatically, and as the carts approach specific sorting stations, the control system activates the belts for precise sorting.

Available in both circular and linear configurations, these sorters are engineered for high throughput. Circular models can achieve speeds of up to 2 meters per second, processing as many as 22,000 items per hour, while linear models can reach speeds of 1.5 meters per second and handle up to 8,000 items per hour. Such systems are widely utilized in industries that require high efficiency and multi-directional sorting, including express delivery, e-commerce, apparel, food services, cosmetics, airports, and pharmaceuticals.

Technical Parameters

Equipment Name	Circular Cross Belt Sorter	Linear Cross Belt Sorter
Sorted Items	Various parcels, cartons, clothing, books, etc.
Cart Pitch	600mm	500mm
Sorting Accuracy	99.99%
Operating Noise	≤72dB(A)
Feeding Method	Manual loading / Automatic loading from feeding station
Sorted Goods Size	MAX:700600500mm MIN:1501508mm
Scanning Method	Top scan / Three-phase five-sided scan / Six-sided scan
Sorted Goods Weight	0.03kg≤M≤20kg	0.1kg≤M≤30kg
Operating Speed	2.0m/s	1.5m/s
Sorting Efficiency	22000 pieces per hour	8000 pieces per hour

Application

Postal and Express Delivery
Cross belt sorting machines are frequently used in regional distribution centers, transfer stations, and medium to large postal and express delivery branches. These facilities manage significant sorting volumes and require automated solutions to streamline operations. As sorting demands increase and labor costs rise, cross belt sorters--especially linear models--are becoming favored for their compact and adaptable designs.

E-Commerce and Global Trade
The explosive growth of e-commerce has caused a notable surge in parcel volumes, particularly during peak shopping seasons. Cross belt sorting systems effectively address the varying needs of different markets during these crucial times. They are commonly employed in sectors such as tobacco, fashion, maternity products, supermarkets, and pharmaceuticals.

Advantages

Intelligent Vision Systems: REALKEY cross belt sorting machines can be outfitted with cutting-edge vision inspection technology tailored to specific requirements. This feature enables real-time monitoring and fault detection for each cart.
Enhanced Cart Linkage Technology: By leveraging REALKEY's advanced recognition systems and programming algorithms, the sorter can transport smaller parcels simultaneously on a single cart while sorting larger parcels with two carts.
Automated Maintenance Management: Users can issue maintenance commands for specific carts via the operating interface, enabling those carts to autonomously navigate to designated maintenance stations.
Proven Durability: With 17 years of experience in the logistics and automated sorting sector, REALKEY has developed a reputation for delivering tailored sorting solutions.
