Intelligent Operations Automated Sorting Systems Parcel Sorter 22000p/H

Intelligent Operations Automated Sorting Systems Parcel Sorter 22000p/H

Brand Name:	Realkey
Model Number:	RKSORT-CBS
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Flexible Sorting Of Multiple Sizes And Directions

Highlight:

Intelligent Operations parcel sorter

Intelligent Automated Sorting Systems

22000p/H Automated Sorting Systems

Product Description

Intelligent Operations Automated Sorting Systems Parcel Sorter 22000p/H

Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Flexible sorting of multiple sizes and directions

Product Overview

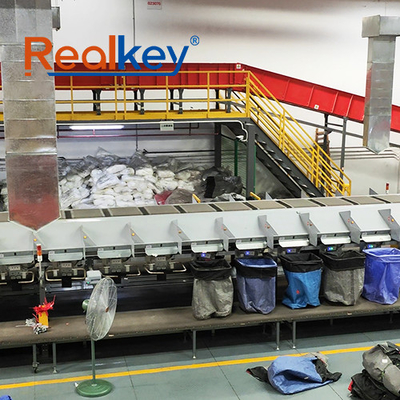

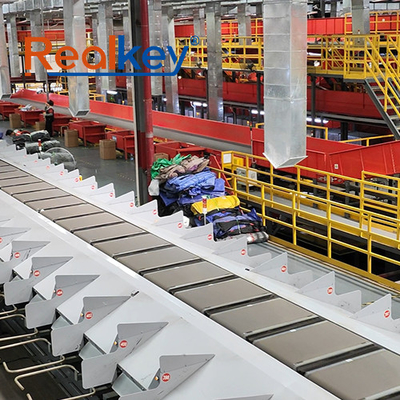

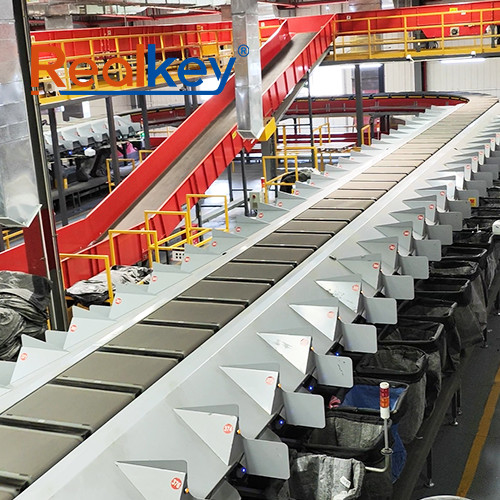

The Realkey Cross Belt Sorter is an innovative solution designed to efficiently handle a wide range of items, including parcels and cartons. This advanced system integrates critical components such as tracks, carts, cart belts, recognition technologies, and communication systems.

The carts are arranged in a continuous chain along the track, moving parallel to create a mainline that intersects with the cart belts, giving the system its name, "Cross Belt Sorter." Items can be loaded onto the cart belts either manually or automatically, and as the carts approach designated sorting stations, the control system activates the belts for precise sorting.

Configurations

Available in two configurations—circular and linear—cross belt sorters are built for high performance:

Circular models: Sorting speeds up to 2 meters per second, capable of processing up to 22,000 items per hour
Linear models: Operating speeds up to 1.5 meters per second, handling up to 8,000 items per hour

Technical Parameters

Parameter	Circular Cross Belt Sorter	Linear Cross Belt Sorter
Sorted Items	Various parcels, cartons, clothing, books, etc.
Cart Pitch	600mm	500mm
Sorting Accuracy	99.99%
Operating Noise	≤72dB(A)
Feeding Method	Manual loading / Automatic loading from feeding station
Sorted Goods Size	MAX:700600500mm MIN:1501508mm
Scanning Method	Top scan / Three-phase five-sided scan / Six-sided scan
Sorted Goods Weight	0.03kg≤M≤20kg	0.1kg≤M≤30kg
Operating Speed	2.0m/s	1.5m/s
Sorting Efficiency	22000 pieces per hour	8000 pieces per hour

Applications

Postal and Express Delivery

Cross belt sorting machines are frequently deployed in regional distribution centers, transfer stations, and medium to large branches of postal and express delivery companies. These facilities handle substantial sorting volumes and necessitate automated solutions for efficient operations.

E-Commerce and Global Trade

The rapid growth of e-commerce has led to a significant surge in parcel volumes during peak shopping periods. Cross belt sorting machines provide effective solutions that address the diverse requirements of various markets during these critical times.

Key Advantages

Intelligent Vision Systems: Real-time monitoring and fault detection with automatic alerts for operational disruptions
Enhanced Cart Linkage Technology: Supports handling items up to 1.2 meters long without sacrificing efficiency
Automated Maintenance Management: Reduces manual intervention and enhances maintenance efficiency
Proven Durability: 17 years of expertise in logistics and automated sorting solutions
