| Brand Name: | Realkey |
| Model Number: | RKSORT-CBS |
| MOQ: | 1 unit |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Attribute | Value |
|---|---|
| Custom Order | Accept |
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Flexible sorting of multiple sizes and directions |

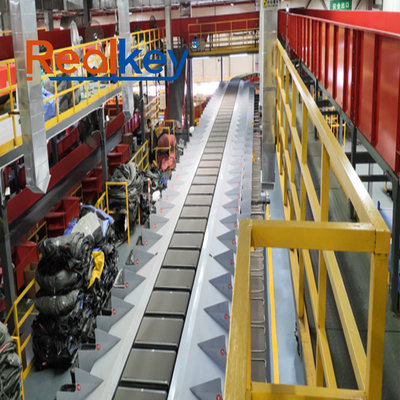

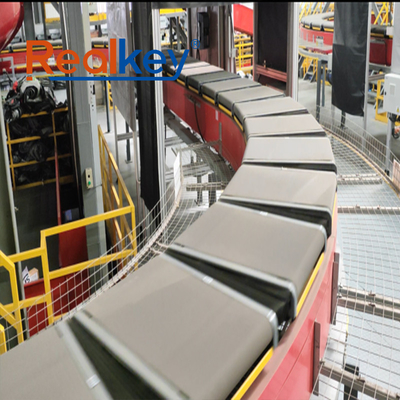

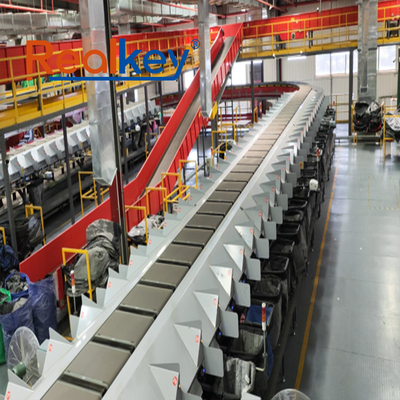

The Cross Belt Sorter (RKSORT-CBS) is an advanced solution designed for efficient sorting of parcels and cartons of varying sizes. This system comprises essential components including tracks, carts, cart belts, recognition systems, and communication networks.
Carts are arranged in a continuous line on the track, moving parallel to form the mainline which intersects with the belts on the carts. Items can be placed on the cart belts either manually or through automated systems. When carts arrive at designated sorting points, the control system activates the belts to sort and dispatch items.
| Equipment Name | Circular Cross Belt Sorter | Linear Cross Belt Sorter |
|---|---|---|
| Sorted Items | Various parcels, cartons, clothing, books, etc. | |
| Cart Pitch | 600mm | 500mm |
| Sorting Accuracy | 99.99% | |
| Operating Noise | ≤72dB(A) | |
| Feeding Method | Manual loading / Automatic loading from feeding station | |
| Sorted Goods Size | MAX:700*600*500mm MIN:150*150*8mm |
|
| Scanning Method | Top scan / Three-phase five-sided scan / Six-sided scan | |
| Sorted Goods Weight | 0.03kg≤M≤20kg | 0.1kg≤M≤30kg |
| Operating Speed | 2.0m/s | 1.5m/s |
| Sorting Efficiency | 22,000 pieces/hour | 8,000 pieces/hour |
Postal and Express Delivery: Regional distribution centers, transfer stations, and branches requiring high-volume sorting
E-Commerce: Efficient solutions for peak shopping periods across various market sectors
With 17 years of experience in logistics conveyance and automatic sorting, Realkey offers robust, durable solutions recognized industry-wide. Our cross belt sorters are designed for long-term performance with minimal maintenance requirements.
