Realkey Cross Belt Sorter Intelligent Recognition & Fully Automated Sorting

Name: Realkey Cross Belt Sorter Intelligent Recognition & Fully Automated Sorting
Brand: QINGDAO REALKEY MACHINERY CO.， LTD
SKU: Realkey-CBS
Price: 10000 USD
Availability: InStock

Brand Name:	Realkey
Model Number:	Realkey-CBS
MOQ:	1
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P
Supply Ability:	The customized products need to be based on the specified plan.

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE EAC UL ISO

Cart Pitch:

600mm

Sorting Accuracy:

99.99%

Operating Noise:

≤72dB（A）

Sorted Goods Weight:

0.03kg≤W≤20kg

Operating Speed:

2.0m/s

Sorting Efficiency:

22000 Pieces Per Hour

Packaging Details:

The customized products need to be based on the specified plan.

Highlight:

cross belt sorter intelligent

automated cross belt sorter

Product Description

Realkey Cross Belt Sorter Intelligent Recognition & Fully Automated Sorting

Key Specifications

Cart Pitch

600mm

Sorting Accuracy

99.99%

Operating Noise

≤72dB（A）

Sorted Goods Weight

0.03kg≤W≤20kg

Operating Speed

2.0m/s

Sorting Efficiency

22000 pieces per hour

Product Overview

Realkey's Cross Belt Sorter (Realkey-CBS) is a cutting-edge solution engineered for high-speed, intelligent sorting of parcels, cartons, and diverse package types. Featuring advanced recognition algorithms and a highly automated architecture, it's built to meet the demands of modern logistics operations requiring precision, speed, and adaptability.

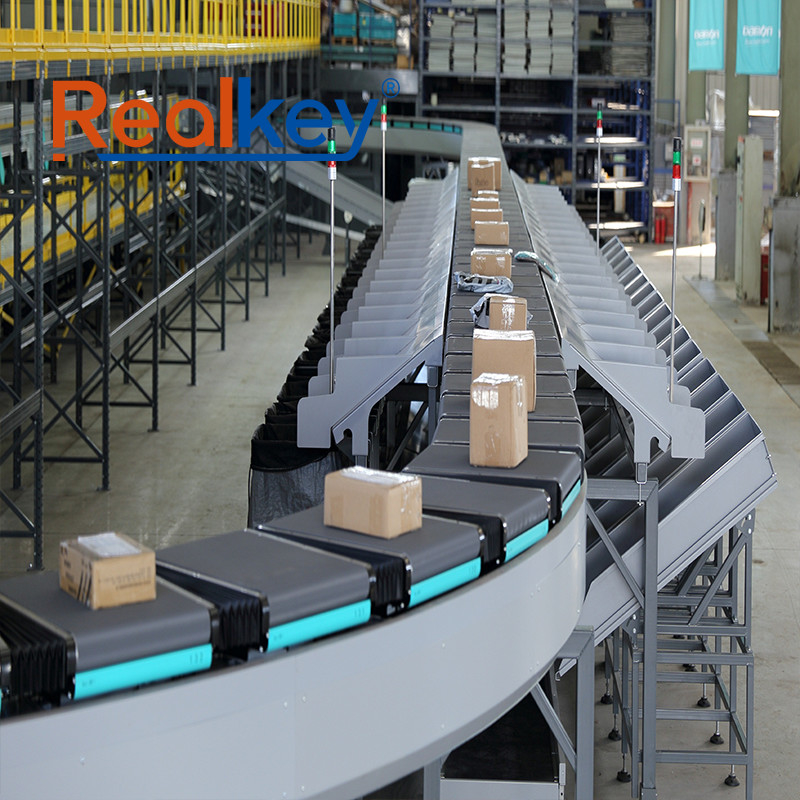

The system is composed of motorized carts, cart-mounted conveyor belts, and a continuous track system that guides items to their correct destinations. The name "Cross Belt" comes from the perpendicular movement between the cart and the belts. As carts reach designated chutes, the system activates the belts to gently and accurately discharge items.

Technical Specifications

Equipment Name	Circular Cross Belt Sorter (CBS - 600C)	Linear Cross Belt Sorter
Model	CBS - 600C	CBS - 500L \| CBS - 300L
Sorted Items	Various parcels, cartons, clothing, books, etc.
Cart Pitch	600mm	500mm \| 300mm
Sorting Accuracy	99.99%
Sorting Efficiency	22000 pieces per hour	6000 pieces per hour \| 8000 pieces per hour
Feeding Method	Manual loading / Automatic loading from feeding station
Sorted Goods Size	MAX: 700600500mm; MIN: 1501508mm
Scanning Method	Top scan / Three-phase five-sided scan / Six-sided scan
Sorted Goods Weight	0.03kg ≤ W ≤ 20kg	0.03kg ≤ W ≤ 20kg \| 0.1kg ≤ W ≤ 30kg
Operating Speed	2.0m/s	1.5m/s \| 1.5m/s
Operating Noise	≤72dB (A)

Industry Applications

Postal & Express Delivery: An essential system in regional distribution centers and large transfer hubs. Realkey's cross belt sorters help reduce labor intensity, increase speed, and enhance accuracy, especially where linear layouts are favored for their footprint efficiency.

E-Commerce & Cross-Border Logistics: Ideal for handling massive surges during shopping seasons, our systems adapt to the fast-changing demands of:

Apparel & Footwear
Baby & Maternity Products
Tobacco & FMCG
Grocery & Supermarkets
Pharmaceutical Logistics

Key Advantages

Intelligent Vision Inspection: Optional vision systems allow real-time monitoring of every cart in operation. Carts with detected faults are automatically isolated, preventing circulation errors and avoiding breakdowns in downstream systems.
Dual-Cart Linkage for Large Parcels: Using Realkey's intelligent recognition software, the system dynamically assigns one cart to small parcels and two carts for large or long items (up to 1.2 meters), maintaining high efficiency without extra operational cost.
Automated Maintenance Routing: When faults occur, carts can automatically reroute to designated maintenance stations, reducing downtime and eliminating the need for manual tracking.
AI-Based Sorting Accuracy: Thanks to Realkey's proprietary recognition technology, the system can adapt to irregular items, mixed loads, and complex sorting logic--ideal for multi-SKU environments.
Proven Reliability: With 18 years of expertise in logistics equipment manufacturing and system integration, Realkey products are engineered for robust operation, low maintenance, and long-term ROI.

From parcel hubs to fashion warehouses and beyond, the Realkey Cross Belt Sorter offers a future-ready foundation for smart logistics. With intelligent detection, automated rerouting, and flexible sorting capacities, it's more than just equipment--it's your competitive advantage in automation.
