| Brand Name: | Realkey |
| Model Number: | Circular Cross Belt Sorter |
| MOQ: | 1 |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Supply Ability: | The customized products need to be based on the specified plan. |
| Cart Pitch | 600mm |
| Sorting Accuracy | 99.99% |
| Operating Noise | ≤72dB（A） |
| Sorted Goods Weight | 0.03kg≤W≤20kg |
| Operating Speed | 2.0m/s |
| Sorting Efficiency | 22000 pieces per hour |

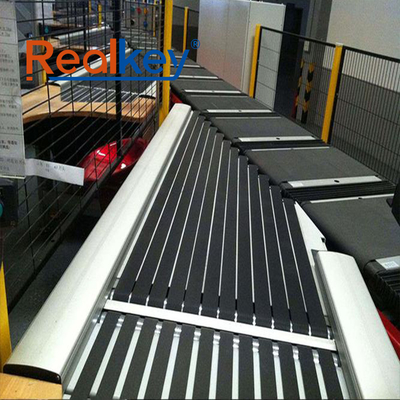

The Realkey Cross Belt Sorter is a high-performance sorting system engineered to handle parcels, cartons, and irregular goods with exceptional speed and accuracy. Designed to meet the evolving needs of express delivery, e-commerce, and distribution hubs, this sorter integrates advanced components such as linked cart systems, dual-direction belts, smart recognition, and real-time communication technology.

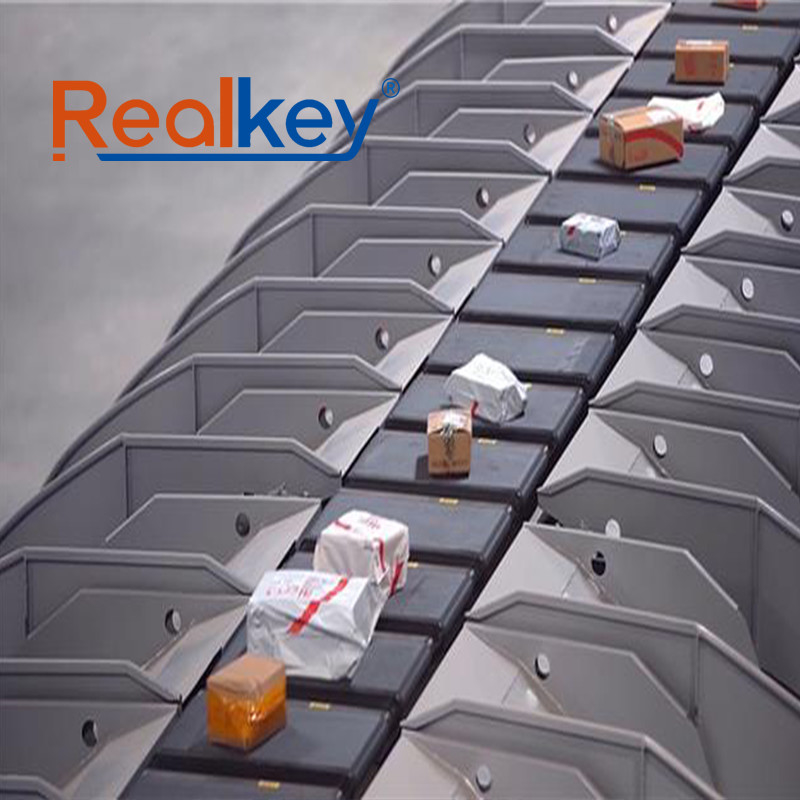

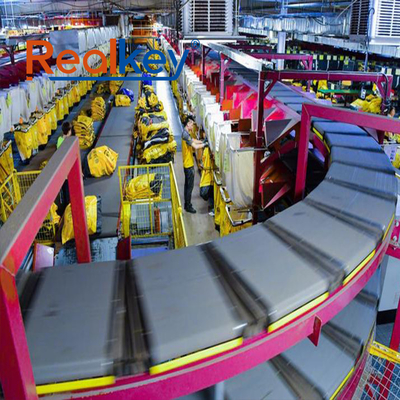

At the core of its operation are carts moving in a closed-loop or linear track layout. Each cart features a belt that moves perpendicular to its path, enabling precise, multi-directional offloading at designated chutes. Items can be loaded manually or automatically, and the control system activates the cross belts at exactly the right moment to ensure smooth, accurate sorting.
Whether circular or linear in design, the system delivers speed, scalability, and sorting precision in even the most demanding logistics environments.
| Equipment Name | Circular Cross Belt Sorter (CBS - 600C) | Linear Cross Belt Sorter |
|---|---|---|
| Model | CBS - 600C | CBS - 500L | CBS - 300L |
| Sorted Items | Various parcels, cartons, clothing, books, etc. | |
| Cart Pitch | 600mm | 500mm | 300mm |
| Sorting Accuracy | 99.99% | |
| Sorting Efficiency | 22000 pieces per hour | 6000 pieces per hour | 8000 pieces per hour |
| Feeding Method | Manual loading / Automatic loading from feeding station | |
| Sorted Goods Size | MAX: 700*600*500mm; MIN: 150*150*8mm | |
| Scanning Method | Top scan / Three-phase five-sided scan / Six-sided scan | |
| Sorted Goods Weight | 0.03kg ≤ W ≤ 20kg | 0.03kg ≤ W ≤ 20kg | 0.1kg ≤ W ≤ 30kg |
| Operating Speed | 2.0m/s | 1.5m/s | 1.5m/s |
| Operating Noise | ≤72dB (A) | |
The Realkey Cross Belt Sorter is widely used across a spectrum of industries that demand fast, accurate, and scalable sorting:
Intelligent Vision Inspection: Optional integration of smart imaging technology allows real-time monitoring of each cart. Faulty carts are automatically identified and isolated, minimizing sorting errors and avoiding downstream disruptions (requires automated feeding systems).
Flexible Dual-Cart Linkage: Realkey's proprietary recognition algorithms support adaptive cart combinations—using a single cart for small items and synchronizing two carts for larger ones (up to 1.2 meters in length). This optimizes throughput without additional hardware investment.
Smart Maintenance Automation: Through the operator interface, users can assign automated fault-routing commands, directing malfunctioning carts to the designated maintenance zone. This reduces manual intervention and ensures faster recovery times.
Proven Reliability: With 18 years of industry experience, Realkey stands as a trusted name in logistics automation. Our equipment is known for durability, accuracy, and long-term performance—backed by responsive service and tailored solutions.
Boost Your Sorting Productivity with Realkey-CBS
Whether you're managing a regional distribution center, an e-commerce fulfillment site, or a multi-category warehouse, the Realkey Cross Belt Sorter helps you reduce costs, improve efficiency, and scale your operations with confidence.
Contact Realkey today to explore a custom solution tailored to your sorting environment.
