| Brand Name: | Realkey |
| Model Number: | RKSORT-SWS |
| MOQ: | 1 unit |
| Price: | USD 10000/Piece |
| Payment Terms: | L/C,T/T,D/P |
| Attribute | Value |
|---|---|
| Custom Order | Accept |
| OEM/ODM | Accept |
| Factory | Direct Factory With Own Exporting Platform |
| Feature | Breaking the limitation of manual sorting of large and irregular items |

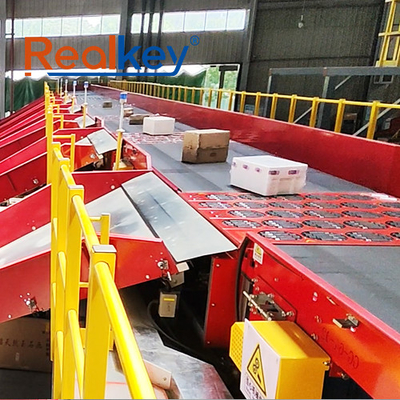

The Swivel Wheel Sorting Machine (also known as Divert Wheel Sorter or Rotating Wheel Sorter) is an advanced automated system designed for efficient parcel and carton sorting in conveyor systems. This robust solution combines an electric drum, precision steering mechanism, intelligent control system, and durable frame construction.
| Model | SWS-10M | SWS-12H |
|---|---|---|
| Sorted Items | Medium to large parcels, woven bags, flexible packages | |
| Weight Range | 0.2kg ≤ M ≤ 50kg | |
| Sorting Capacity | 4000 pieces/hour | 6000 pieces/hour |
| Parcel Size Range | MAX: 1000×1000×700mm MIN: 150×150×30mm |
|
| Sorting Modes | Single-sided / Double-sided sorting | |
| Electric Drum Size | 85mm length × 70mm diameter | |
| Conveying Speed | 1-1.5m/s | 1.2-2m/s |
| Operating Noise | ≤72dB(A) | |

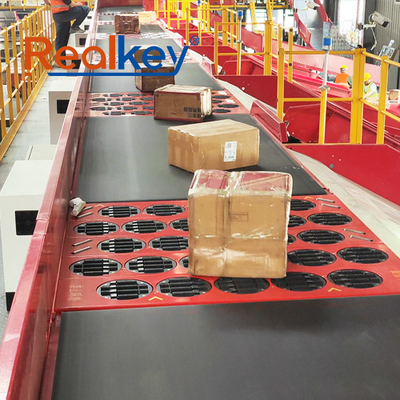

Features a flat surface with multiple rubber-coated electric rollers for flexible contact with various items including clothing, books, boxes, and cartons.
Electric roller system delivers high load capacity, low noise, rapid operation, and smooth transmission with sorting speeds up to 6000 pieces/hour.
Standardized modular design allows for quick installation and maintenance with independently controlled steering modules for precise operation.
Integrated sensors and servo-driven mechanism enable precise package handling with configurable sorting modes (uni-directional, bi-directional, multi-angle).
CNC-machined components ensure high precision, extended lifespan, and reduced maintenance requirements.
17 years of logistics automation expertise with durable construction meeting industry safety standards.
