Compact Swivel Wheel Sorter High Speed Sorting Conveyor With Quick Installation

Brand Name:	Realkey
Model Number:	RKSORT-SWS
MOQ:	1 unit
Price:	USD 10000/Piece
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/EAC/UL/ISO

Custom Order:

OEM/ODM:

Fatory:

Direct Factory With Own Exporting Platform

Feature:

Breaking The Limitation Of Manual Sorting Of Large And Irregular Items

Highlight:

Compact Swivel Wheel Sorter

Compact High Speed Sorting Conveyor

Swivel Wheel Sorter Quick Installation

Product Description

Compact Swivel Wheel Sorter High Speed Sorting Conveyor With Quick Installation

Product Specifications

Attribute	Value
Custom Order	Accept
OEM/ODM	Accept
Factory	Direct Factory With Own Exporting Platform
Feature	Breaking the limitation of manual sorting of large and irregular items

Product Overview

Ideal for E-commerce Warehouses Swivel Wheel Sorter Efficient Order Fulfillment Capabilities

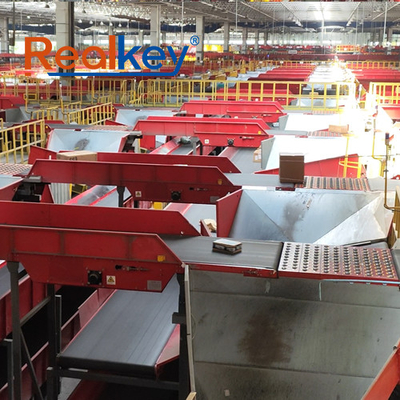

The Swivel Wheel Sorting Machine, also known as the Divert Wheel Sorter or Rotating Wheel Sorter, is a highly effective solution designed for sorting parcels and cartons within conveyor systems. This machine consists of an electric drum (wheel), a steering system, a control unit, and a robust frame.

Technical Parameters

Model	SWS-10M	SWS-12H
Sorted Items	Medium to large parcels, woven bags, flexible packages, etc.
Weight Range	0.2kg≤M≤50kg	0.2kg≤M≤50kg
Sorting Capacity	4000 pieces per hour	6000 pieces per hour
Parcel Size Range	MAX:10001000700mm (Example for a 1-meter wide device) MIN:15015030mm
Sorting Success Rate	99.99%
Sorting Modes	Single-sided sorting / Double-sided sorting
Electric Drum Size	Drum length 85mm * Drum diameter 70mm
Conveying Speed	1-1.5m/s	1.2-2m/s
Number of Swing Mechanisms	Not less than 2	Not less than 5
Parcel Spacing	800mm	400mm
Operating Noise	≤72dB(A)

Key Features

Versatility: Features a flat surface with multiple small electric rollers coated with rubber for flexible contact with various parcel types including clothing, books, boxes, and cartons.
Efficient Sorting: Achieves sorting speeds up to 6000 pieces per hour with high load capacity, low noise, and smooth transmission.
Compact Structure: Straightforward design ensures stability and low failure rate, with servo motors enabling precise steering adjustments.
Quick Installation: Modular design allows for rapid assembly and straightforward maintenance with independently controlled steering modules.

Applications

The swivel wheel sorter is ideal for various logistics environments including:

Express delivery services and logistics centers
E-commerce warehouses for efficient order processing
Manufacturing production lines for material management
Industries including healthcare, food processing, and renewable energy

Advantages

Advanced Technology: Integrated sensors and servo-driven mechanism ensure fast response times and precise control.
Precision Manufacturing: CNC-machined components result in high precision, long lifespan, and low maintenance.
Safety and Stability: Designed for durability with comprehensive safety measures meeting industry standards.
Reliability: Backed by 17 years of logistics automation expertise with proven durability.
